Quadcopter CFD simulation

Drone Professional Simulation Template

Drone Professional Simulation Template is a high fidelity aerospace grade CFD environment developed to accurately capture the aerodynamic behavior and flight performance of unmanned aerial vehicles under realistic operating conditions where complex interactions between propellers airframe and surrounding flow are resolved with advanced numerical precision enabling engineers to analyze and optimize drone efficiency stability and payload capability within a fully prepared and ready to use simulation framework

Unmanned aerial vehicles operate under highly sensitive aerodynamic conditions where small geometric changes directly affect lift generation drag forces energy consumption and flight endurance making aerodynamic optimization a critical factor in achieving high performance designs and extended mission capability in modern drone applications

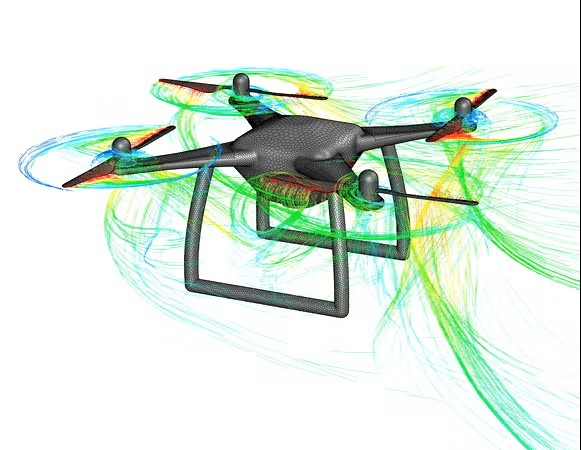

The template replicates real world physics through detailed modeling of multi rotor flow interaction propeller induced velocity fields wake interference and unsteady aerodynamic behavior allowing accurate prediction of lift and drag forces pressure distribution and flow separation phenomena across the drone structure including arms payload mounts and control surfaces this enables engineers to deeply understand how airflow evolves around the vehicle and how design modifications influence overall flight performance

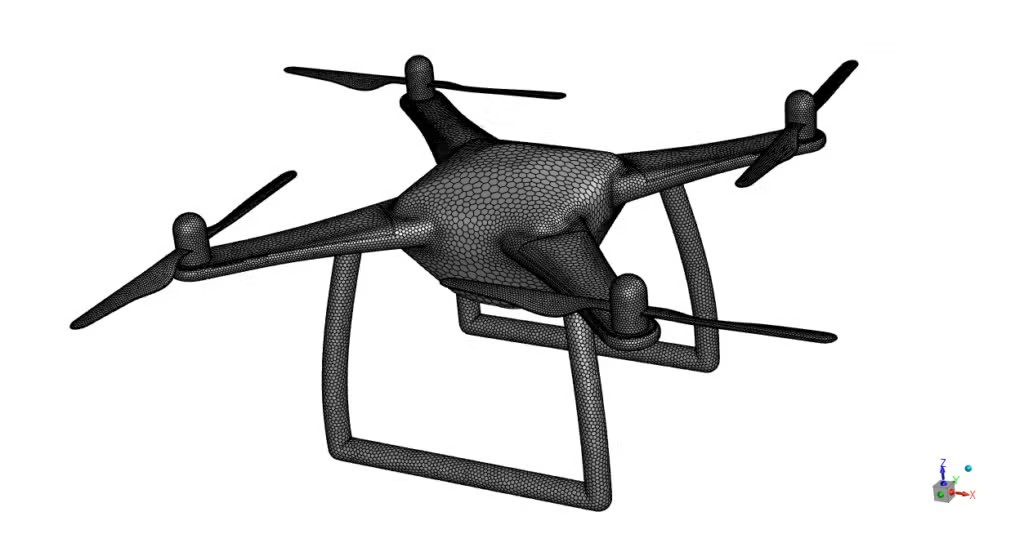

The simulation environment is built using advanced meshing strategies including high quality polyhedral cells and localized refinement zones around critical aerodynamic regions ensuring precise capture of boundary layer development vortex formation and wake structures while maintaining computational efficiency for iterative design studies

Flow physics are solved under realistic flight conditions including forward flight hover and transitional regimes where turbulence models and transient solvers capture unsteady flow structures and environmental effects such as gust interaction and flow instability providing a comprehensive understanding of drone behavior in real operational scenarios

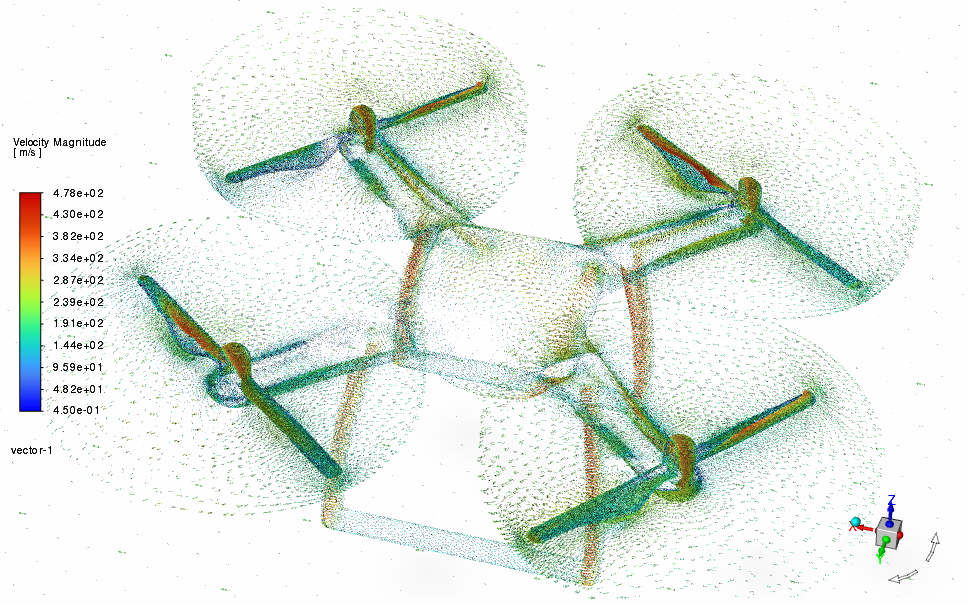

Post processing capabilities allow detailed evaluation of aerodynamic coefficients including lift and drag analysis velocity contours pressure distribution wall shear stress and vortex visualization enabling engineers to identify performance limitations such as high drag regions inefficient flow structures and energy losses caused by wake recirculation and wingtip vortices which directly impact propulsion efficiency and flight endurance

The template includes fully prepared geometry organization optimized mesh setup predefined boundary conditions and parameterized inputs allowing rapid modification of key design variables such as propeller speed flight velocity and angle of attack supporting fast design iteration and integration with optimization workflows and design exploration tools

This solution is ideal for drone manufacturers aerospace engineers and research teams aiming to reduce physical prototyping costs accelerate development cycles and achieve high performance optimized UAV designs through a professional simulation driven approach developed by epsilonX to reflect real industry workflows advanced engineering methodology and scalable deployment across multiple drone configurations and mission profiles

Unmanned Aerial Vehicles (UAVs), commonly known as drones, fly high in the sky for military observation, package delivery, and farm inspection. To fly very far and carry heavy cameras or packages, a drone needs a perfectly smooth shape. The science of how the wind moves around the wings, the body, and the propellers is called Drone UAV Aerodynamic science. Having good aerodynamics is the secret to increasing the maximum speed, saving battery life, and carrying heavy payloads. In the past, testing a new drone shape meant building a real physical model and putting it inside a massive wind tunnel. This physical testing costs a huge amount of money, usually between 10k and 100k, and takes many months. To save time and money, modern engineers now use a computer test called a Drone UAV Aerodynamic CFD simulation. By using the powerful ANSYS Fluent software, we can look at the invisible wind pushing against the aircraft. This Drone UAV Aerodynamic fluent simulation calculates exactly how much lifting force keeps the drone in the sky and how much drag force slows it down. A highly accurate CFD Analysis of Drone UAV Aerodynamic helps manufacturers safely test hundreds of different wing shapes on a computer. For more easy-to-understand lessons on how air moves over airplanes and flying vehicles,

Figure 1: Shahed drone full geometry model, showing the complete 3D computer design including the long fuselage body, the large delta wings, the V-tail stabilizers, and the rear pusher propeller space.

Simulation Process: Polyhedral Meshing and Flight Simulation Setup

For this Drone UAV Aerodynamic ANSYS Fluent project, we started with a full-scale 3D computer model of a Shahed drone, which features complex delta wings and a V-tail. To test this shape, we built a highly detailed virtual wind tunnel around the drone using the Fluent Meshing tool. We divided this giant empty air space into exactly 5,456,172 tiny polyhedral cells. These high-quality, multi-sided cells are very important because they flawlessly catch the complex wind moving over the sharp edges of the wings and the curved nose of the drone.

We set up the physics inside the Drone UAV Aerodynamic fluent software to solve the 3D airflow math. We programmed the software to blow air directly at the front of the drone at a fast cruise speed of 50 m/s, which is about 180 km/h. Most importantly, we set the Angle of Attack (AoA) to exactly 0 degrees. This means the nose of the drone is not pointing up or down; it is flying completely flat and straight like an arrow. At this high speed, the wind becomes very messy and chaotic, creating a high Reynolds number of 5 to 15 million. The computer solver carefully checked the wind speed and pressure inside all 5.4 million cells to find the exact aerodynamic pushing and pulling forces acting on the drone body.

Post-processing: Deep Analysis of Aerodynamic Forces at 0° Angle of Attack

To truly master this flight simulation study, we must look at the data numbers and the contours, then translate that math into simple, real-world flying physics. The success of this drone depends entirely on how much it gets pushed up into the air (lift) and how hard the wind pushes it backward (drag). Because we tested this drone at exactly a 0-degree Angle of Attack, the physics results are very unique. We will explain exactly why flying perfectly flat ruins the lifting power, where the wind creates dangerous friction, and how invisible tornadoes waste engine fuel.

First, we must deeply analyze the Lift and Drag coefficients from the computer’s final report. The lifting power of the drone is measured by a number called the lift coefficient. Because the drone is flying straight forward at a 0-degree Angle of Attack, the wind hits the top of the wings and the bottom of the wings almost equally. Because the air is perfectly split, the computer calculates a tiny, almost useless lift coefficient of only 0.0117. This extremely small number mathematically proves that flying completely flat prevents the large delta wings from catching enough air underneath them to carry a heavy 200 kg body. By seeing this failure in the software, engineers immediately know they must change the real-life flight controls to point the nose 5 to 10 degrees higher into the sky (increasing the AoA) to generate real lift. At the exact same time, the computer shows a high drag coefficient of 0.192. Even at a 0-degree angle, the fast 50 m/s wind violently smashes into the flat front nose and the thick main body. This massive backward push means the manufacturer must buy a strong, heavy engine that produces 44 to 59 kW just to keep the drone moving forward.

Figure 2: Velocity contour (0.30-70.17 m/s) around the Shahed drone, showing the wind speeding up over the wings and the spinning tornadoes (vortices) at the wing tips.

Next, we look at the Wall Shear Stress picture (Figure 3) to find out exactly where the wind is painfully rubbing against the metal. Most of the flat delta wing areas are colored dark blue. This is a perfect result because it means the air is gliding smoothly over the wings with a very low friction stress of 0.00 to 0.15 Pa. However, the picture also shows bright red and yellow warning spots. Because the drone is at a 0-degree Angle of Attack, the wind hits the exact front tip of the nose and the front edges of the V-tail perfectly straight on. This direct, straight hit creates a harsh maximum friction of 0.68 Pa. This proves that the heavy aerodynamic drag is not caused by the flat wings, but rather by the blunt shape of the nose smashing into the air. To make the drone fly much further on a single tank of fuel, the designers simply need to make the nose much sharper to cut through the air easily.

Figure 3: Wall shear stress (0.00-0.68 Pa) on the drone body, revealing the dangerous red hot spots at the nose tip because of the direct 0-degree Angle of Attack hit.

Finally, we study the Velocity Streamlines (Figure 2) to see the beautiful invisible paths of the wind. When the wind first approaches the drone, it travels at a steady 50 m/s. But as the air climbs over the thickest part of the wings, it is forced to squeeze and speed up tremendously, glowing red and yellow at 65 to 70.17 m/s. However, directly behind the tail of the drone, we see dark blue colors where the air slows down to a sluggish 35 to 45 m/s. This slow, messy wake zone represents totally wasted engine energy. Even worse, at the very tips of the wings, the streamlines twist into circles spinning at 60 to 65 m/s. Engineers call these wingtip vortices. These are basically invisible spinning tornadoes that drag the drone backward. By seeing these tornadoes clearly in the CFD analysis, engineers can easily add small vertical fins (called winglets) to the ends of the wings. These tiny fins break the tornadoes, instantly saving battery power and making the drone fly miles further.
