CFD & Structural Validation of an Urban Bollard System Using ANSYS

Project Background & Engineering Approach

This project presents an advanced engineering study of a modern urban bollard designed for road service and industrial environments, where durability, safety, and aesthetics must coexist. Unlike conventional approaches that rely heavily on empirical calculations and overdesign, this work adopts a simulation-driven methodology using ANSYS to validate performance before physical implementation. By integrating Computational Fluid Dynamics through ANSYS Fluent and structural analysis via ANSYS Mechanical, the project ensures a comprehensive understanding of both environmental and mechanical influences on the system.

The bollard geometry is intentionally designed as a slender, vertically extended structure inspired by architectural columns, allowing it to blend seamlessly into modern urban landscapes while maintaining mechanical efficiency. However, such geometries introduce complex engineering challenges related to airflow interaction and stress distribution, making simulation essential rather than optional.

The core objective of this project is to replace uncertainty with validated engineering data, ensuring performance, safety, and cost-efficiency from the earliest design stages.
This approach eliminates the need for excessive safety margins and reduces dependency on costly physical prototyping.

By adopting this methodology, the design process transitions from trial-and-error to a predictive, data-driven workflow, aligning with modern industrial standards and smart infrastructure development.

CFD Analysis & Aerodynamic Performance

The aerodynamic behavior of the bollard was analyzed using ANSYS Fluent under realistic external flow conditions. A steady-state, pressure-based solver combined with a k-ε turbulence model was applied to simulate urban wind interaction with the structure. The computational domain was carefully defined to capture upstream and downstream flow development, ensuring accurate representation of real-world behavior.

The simulation results revealed a well-defined high-pressure stagnation zone at the frontal surface, where incoming airflow directly impacts the structure. Along the sides, the flow accelerates smoothly due to the streamlined geometry, while a controlled wake region forms behind the bollard as the flow separates and gradually stabilizes downstream.

The slender design significantly reduces turbulence intensity and minimizes chaotic flow separation compared to traditional bulky bollards.
Pressure gradients remain smooth and continuous, indicating a well-optimized aerodynamic profile.

These findings are crucial because airflow-induced forces can lead to long-term issues such as vibration, noise, and material fatigue. By maintaining stable flow behavior, the design ensures improved durability and operational reliability in outdoor environments.

Additionally, the reduced wake size contributes to lower aerodynamic drag, which is particularly beneficial in dense urban settings where multiple structures interact with airflow. The analysis confirms that the bollard not only performs structurally but also behaves efficiently within its environmental context.

Structural Analysis, Results & Engineering Value

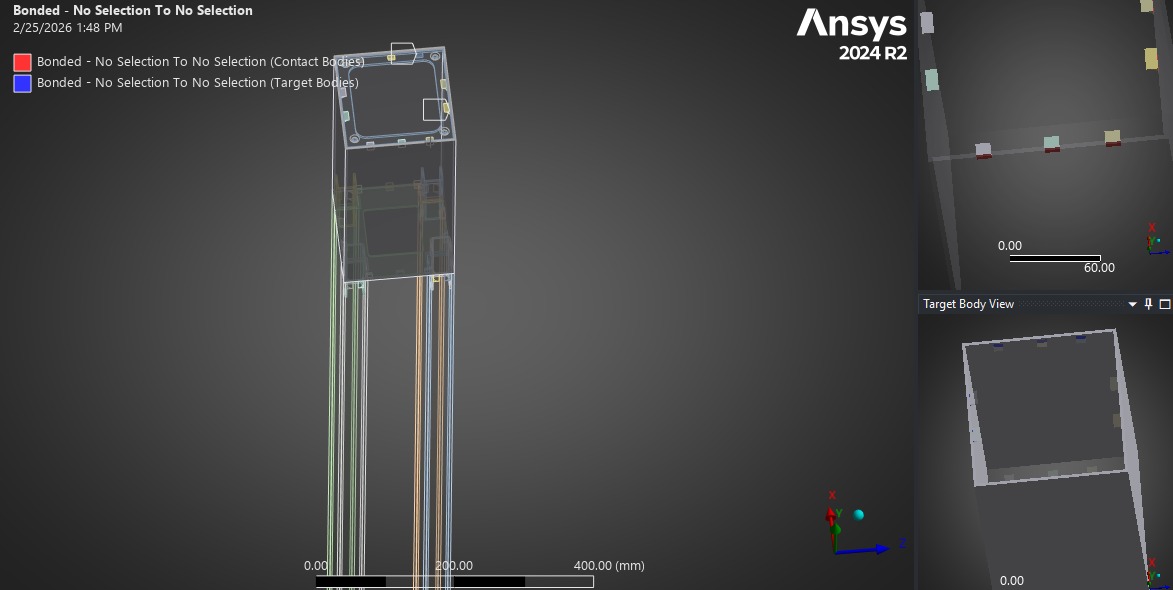

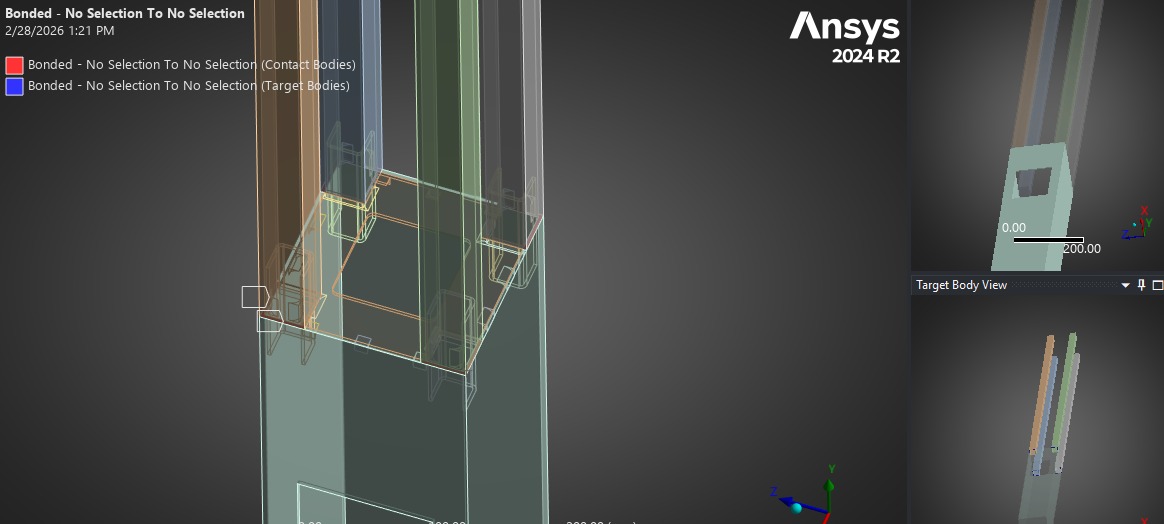

To complement the fluid analysis, a detailed structural assessment was conducted using ANSYS Mechanical. The model was subjected to realistic boundary conditions, including fixed support at the base and external loading scenarios representing wind forces and service conditions. Structural steel properties were applied, and all interfaces were modeled as bonded contacts to reflect actual assembly behavior.

The results indicate that the maximum von Mises stress reaches approximately 292 MPa, primarily concentrated at the upper joint connection and transition zones between structural members. Despite these localized peaks, the majority of the structure operates within safe elastic limits, demonstrating overall stability and reliability.

Stress concentrations are localized and predictable, enabling targeted design improvements without overengineering the entire structure.
The global deformation remains minimal, confirming a high stiffness-to-weight ratio and efficient load transfer to the base support.

These insights provide a clear pathway for optimization, such as refining joint geometry, increasing fillet radii, and improving internal support distribution. Such modifications can significantly enhance fatigue resistance and extend the service life of the product without increasing material costs unnecessarily.

The true strength of this project lies in the integration of CFD and FEA into a unified engineering workflow. This combined approach allows for a deeper understanding of how aerodynamic forces influence structural behavior, leading to more informed and reliable design decisions.

Simulation-driven engineering reduces development time, minimizes cost, and delivers higher confidence in product performance.
It transforms a simple infrastructure element into a fully validated, high-performance system ready for real-world application.

In conclusion, this project demonstrates how leveraging ANSYS can elevate the design of urban infrastructure components. The validated bollard design achieves a balance between aerodynamic efficiency, structural integrity, and material optimization, making it a practical and scalable solution for modern road service and industrial applications.

Conclusion

This project demonstrates how a seemingly simple infrastructure element, such as a roadside bollard, can be transformed into a high-performance engineered product when approached through a simulation-driven methodology. By leveraging the integrated capabilities of ANSYS, the design process moved beyond traditional assumptions and empirical estimations into a domain of quantifiable, validated performance. The combination of ANSYS Fluent for aerodynamic analysis and ANSYS Mechanical for structural validation provided a comprehensive understanding of how the bollard behaves under real-world conditions, both in terms of fluid interaction and mechanical response.

From an aerodynamic perspective, the results confirmed that the slender, column-inspired geometry contributes significantly to flow stability and reduced turbulence intensity. The presence of controlled wake regions and smooth pressure gradients indicates that the design successfully minimizes adverse flow effects such as vortex shedding and fluctuating loads. This is particularly important in urban environments where continuous wind exposure can lead to long-term fatigue and performance degradation. The CFD analysis proves that the geometry is not only visually appealing but also aerodynamically efficient and environmentally adaptive.

On the structural side, the analysis provided critical insights into stress distribution and deformation behavior. While localized stress concentrations were identified near connection regions, these were predictable and manageable within safe material limits. The structure demonstrated high stiffness with minimal deformation, confirming its ability to withstand operational loads without compromising integrity. The identification of critical zones enables precise optimization rather than unnecessary overdesign, resulting in a more efficient and cost-effective product. This targeted approach ensures that improvements can be implemented where they are truly needed, enhancing durability without increasing overall material consumption.

One of the most significant outcomes of this project is the validation of a fully integrated CFD–FEA workflow. Instead of treating aerodynamic and structural aspects as separate disciplines, their interaction was analyzed holistically, allowing for deeper engineering insight. This integration ensures that forces predicted by fluid analysis are directly understood in terms of their structural impact, leading to more reliable and realistic design decisions. Such a unified approach represents a shift toward modern engineering practices where simulation replaces guesswork and data replaces assumption.

Beyond the technical findings, the project highlights the broader industrial value of simulation-driven design. In traditional workflows, multiple physical prototypes are often required to validate performance, leading to increased costs, extended timelines, and limited design flexibility. By contrast, this project demonstrates how digital validation using ANSYS can significantly reduce development cycles while improving overall product quality. The ability to test, iterate, and optimize virtually allows engineers to reach higher performance levels in less time and with greater confidence.

The implications of this work extend far beyond a single bollard design. The same methodology can be applied to a wide range of infrastructure and industrial components, particularly in the context of smart cities, transportation systems, and large-scale urban developments. As cities continue to evolve, the demand for structures that are not only functional but also efficient, durable, and aesthetically integrated will continue to grow. Simulation-driven engineering provides the tools necessary to meet these demands while maintaining economic feasibility.

Moreover, this project reinforces the importance of engineering precision in small-scale elements. While bollards may appear simple, they are subjected to continuous environmental exposure and mechanical stress. Neglecting detailed analysis at this level can lead to premature failure, increased maintenance costs, and compromised safety. This work proves that even the smallest components benefit significantly from advanced engineering validation. By applying high-level simulation techniques, the design achieves a level of reliability that would be difficult to guarantee through conventional methods alone.

Another key takeaway is the role of optimization in achieving balance between performance and cost. Through simulation, it becomes possible to identify exactly where material is needed and where it can be reduced. This leads to designs that are not only stronger but also lighter and more resource-efficient. Optimized designs contribute directly to sustainability by reducing material usage and extending product lifespan. In large-scale projects, these savings can translate into substantial economic and environmental benefits.

The project also demonstrates the importance of engineering adaptability. By understanding how the bollard responds to different loading conditions and environmental factors, the design can be easily modified or scaled to suit various applications. Whether used in highways, industrial zones, or urban centers, the validated design framework ensures consistent performance across different scenarios. This flexibility makes the solution highly versatile and suitable for a wide range of real-world implementations.

In conclusion, this work represents a clear example of how modern engineering tools can redefine the development of infrastructure components. By utilizing ANSYS as the foundation for design and validation, the project achieves a level of performance, reliability, and efficiency that aligns with the demands of contemporary engineering standards. The transition from traditional design methods to simulation-driven workflows is no longer optional—it is essential for achieving competitive, high-quality results.

Ultimately, the validated bollard design stands as a robust, efficient, and scalable solution, capable of meeting the challenges of modern urban environments. It reflects a broader shift in engineering philosophy, where data-driven insights guide every stage of development, ensuring that products are not only built to function but are engineered to excel.
