S-215 Pedestal Crane Design and Load Analysis Using ANSYS: Enhancing Structural Integrity Through Finite Element Analysis

Introduction

In modern offshore and heavy industrial operations, pedestal cranes play a vital role in lifting, transporting, and positioning heavy equipment under demanding environmental conditions. Whether installed on offshore oil and gas platforms, floating production units, marine vessels, or industrial ports, these cranes must operate safely while carrying extremely high loads over thousands of lifting cycles. Unlike conventional cranes working in controlled environments, offshore pedestal cranes are continuously exposed to wind loading, wave-induced vessel motions, temperature variations, and dynamic operational forces. These conditions create complex structural behaviors that cannot be fully understood using traditional hand calculations alone.

The S-215 Pedestal Crane represents a highly engineered lifting system designed to withstand these demanding service conditions while maintaining exceptional levels of safety and operational reliability. Every component of the crane—from its pedestal foundation to the boom and lifting mechanism—must be capable of transferring ennormous loads without exceeding allowable stress limits or experiencing excessive deformatio. As crane capacities continue to increase while manufacturers seek lighter and more efficient designs, structural analysis has become an indispensable part of the engineering process.

At Epsilon X Sky, we utilized ANSYS Mechanical to perform a comprehensive Finite Element Analysis (FEA) of an S-215 Pedestal Crane. Our objective was not only to verify the structural integrity of the crane under operational loading conditions but also to identify opportunities for design optimization while maintaining compliance with international engineering standards. The project involved detailed geometry preparation, finite element modeling, mesh optimization, material assignment, realistic load application, boundary condition definition, stress evaluation, deformation assessment, and engineering validation.

Modern engineering is no longer based on assumptions alone. High-fidelity numerical simulation allows engineers to predict structural behavior before fabrication begins, significantly reducing development costs while improving safety, reliability, and product performance.

This article explores the engineering methodology used throughout the project, demonstrating how simulation-driven design enables engineers to make informed decisions that improve structural performance and reduce engineering uncertainty.

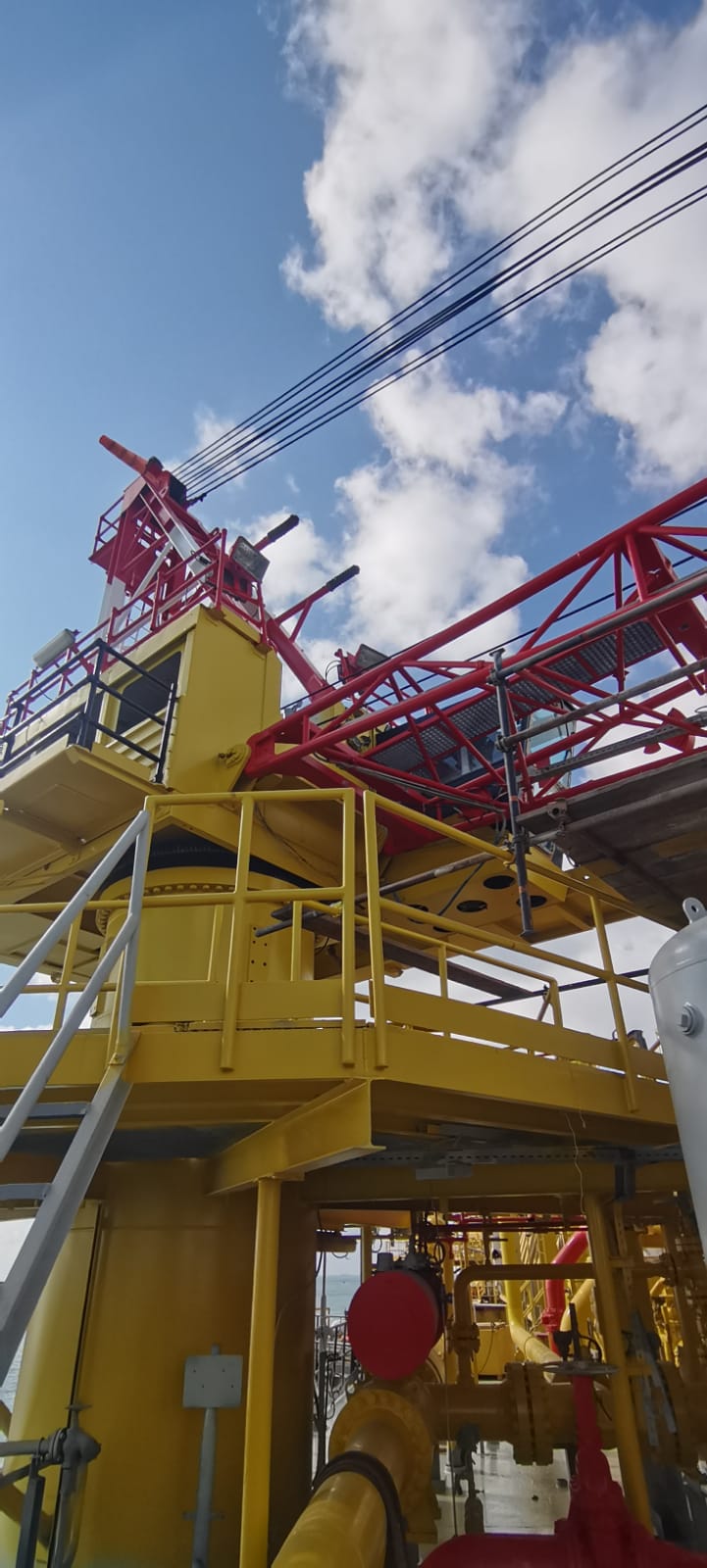

Understanding the S-215 Pedestal Crane and Engineering Design Requirements

The design of a pedestal crane extends far beyond selecting structural members capable of supporting a specified lifting capacity. Every lifting operation generates a combination of tensile, compressive, bending, torsional, and shear forces that travel through the entire structural system. These forces vary continuously depending on the boom angle, load magnitude, lifting radius, environmental conditions, and crane configuration. Consequently, the structure must be capable of resisting multiple loading scenarios without compromising stability or safety.

Unlike static support structures, pedestal cranes experience continuously changing operational conditions. As the crane rotates, lifts, accelerates, and lowers heavy loads, internal stress distributions evolve throughout the structure. Offshore installations introduce additional complexity because environmental loading caused by wind, waves, and vessel motion continuously interacts with operational loads. These combined loading conditions require engineers to evaluate structural performance under numerous realistic operating scenarios rather than relying on a single worst-case calculation.

The primary structural components of the S-215 Pedestal Crane include the pedestal foundation, slewing bearing, rotating platform, boom assembly, hydraulic cylinders, lifting hook, support brackets, reinforcement plates, and structural connections. Each component performs a unique function while contributing to the overall load transfer mechanism. When the crane lifts a suspended load, forces are transmitted sequentially through the hook, boom, rotating assembly, pedestal, and finally into the supporting foundation. At every transition between structural components, localized stress concentrations may develop due to abrupt geometric changes or variations in structural stiffness.

Understanding how loads travel through the crane structure is fundamental to producing an accurate finite element model. Without this understanding, simulation results may fail to represent the true structural behavior of the system.

One of the greatest challenges in crane engineering is balancing structural strength with weight reduction. Increasing the thickness of structural members improves stiffness and reduces deformation, but it also increases manufacturing costs, transportation weight, and installation complexity. Conversely, reducing material thickness decreases overall weight but may introduce excessive stress or unacceptable structural deflection. Modern engineering therefore seeks the optimum balance between safety, efficiency, and economic performance.

Finite Element Analysis provides engineers with the ability to evaluate these competing design objectives before physical manufacturing begins. Instead of constructing multiple expensive prototypes, designers can investigate numerous design alternatives digitally, allowing structural modifications to be assessed quickly and accurately. By identifying highly stressed regions early in the design process, reinforcement can be added only where required, resulting in lighter, stronger, and more cost-effective crane structures.

Another important design consideration involves compliance with international engineering standards. Offshore cranes must satisfy stringent requirements established by organizations such as API, DNV, ISO, and other regulatory bodies. Numerical simulation provides quantitative evidence that structural performance meets these requirements while maintaining acceptable safety margins under prescribed loading conditions.

At Epsilon X Sky, every engineering decision throughout this project was supported by numerical evidence obtained through ANSYS Mechanical. Rather than relying solely on conservative assumptions, the simulation provided detailed insight into stress distribution, deformation behavior, load transfer mechanisms, and structural efficiency, enabling informed engineering decisions throughout the development process.

A successful crane design is not simply one that withstands maximum loads—it is one that achieves the required safety, reliability, and performance while making efficient use of materials and manufacturing resources.

Finite Element Modeling in ANSYS: Geometry Preparation, Material Definition, and Mesh Generation

Developing an accurate finite element model is one of the most important stages of any structural engineering project. Regardless of how powerful the solver or how advanced the numerical algorithms may be, the quality of the final results will always depend on the quality of the engineering model that is created before the simulation begins. This principle is especially important when analyzing heavy lifting equipment such as the S-215 Pedestal Crane, where complex structural geometry, multiple load paths, and highly localized stress concentrations must all be represented accurately within the numerical model.

At Epsilon X Sky, considerable effort was dedicated to preparing the crane geometry before importing it into ANSYS Mechanical. While the original Computer-Aided Design (CAD) model was developed for manufacturing purposes, it required significant modifications before becoming suitable for finite element analysis. Manufacturing models often include small features such as bolts, fillets, threaded holes, decorative elements, identification markings, and minor geometric details that have little influence on global structural behavior. Although these details are essential for fabrication, they dramatically increase the number of finite elements required during analysis without improving the accuracy of the engineering results.

One of the first principles of successful finite element analysis is understanding the difference between a manufacturing model and a simulation model. A simulation model is not intended to reproduce every manufacturing detail; instead, it is designed to reproduce the physical behavior of the structure with maximum numerical efficiency.

The geometry preparation process therefore involved removing unnecessary small features while preserving every structural component that contributed to load transfer or influenced stiffness. Sharp edges that could create unrealistic stress singularities were reviewed carefully, overlapping bodies were corrected, disconnected surfaces were repaired, and all structural components were examined to ensure that proper contact interfaces could be established during the simulation. This preprocessing stage greatly improved both computational efficiency and numerical stability while maintaining the engineering integrity of the crane.

Following geometry preparation, the next stage involved defining the material properties of every structural component. Material assignment is often underestimated, yet it represents one of the most influential aspects of structural simulation because every stress, deformation, and safety factor calculation depends directly upon the mechanical behavior of the selected material. For the S-215 Pedestal Crane, structural steel properties were assigned using experimentally validated engineering data, including Young's Modulus, Poisson's Ratio, material density, and yield strength. These properties determine how the crane responds when subjected to external loading and directly influence predictions of elastic deformation, stress distribution, and structural stiffness.

In many engineering projects, engineers must evaluate several different materials before selecting the most appropriate one. Numerical simulation allows these materials to be compared quickly by replacing material properties within the finite element model without modifying the underlying geometry. This capability enables engineers to investigate whether stronger materials can reduce structural weight or whether alternative alloys can improve fatigue performance without compromising safety.

After assigning material properties, careful attention was given to defining the contact relationships between structural components. A pedestal crane is not a single continuous piece of steel but rather an assembly composed of numerous interconnected parts. During operation, loads are transferred across welds, bolted joints, bearings, support plates, and structural interfaces. If these connections are not represented correctly within the simulation, the calculated stress field may differ significantly from the actual structural behavior.

ANSYS provides several methods for representing these interfaces, including bonded contacts, frictional contacts, frictionless contacts, and no-separation conditions. The appropriate contact type depends upon the physical behavior of the connection being modeled. Welded joints, for example, are generally represented using bonded contacts because the connected components move together without relative displacement. Sliding interfaces or mechanical bearings may require frictional contact definitions that permit controlled movement while transferring load between adjacent surfaces.

Accurate contact modeling is just as important as accurate geometry because loads must follow realistic paths through the entire structural assembly. Incorrect contact definitions frequently produce unrealistic stress concentrations or artificially stiff structural behavior.

Once the structural assembly had been prepared, the project progressed to one of the most critical stages of finite element analysis: mesh generation. The finite element mesh divides the entire crane into thousands—or often millions—of small mathematical elements connected at discrete nodes. Within each element, the governing equations of structural mechanics are solved numerically, allowing engineers to predict stresses, strains, and displacements throughout the complete structure.

A common misconception among inexperienced analysts is that increasing the number of mesh elements automatically produces a better simulation. In reality, successful meshing requires engineering judgment rather than simply creating the largest possible model. Excessively coarse meshes may fail to capture important stress gradients, while unnecessarily fine meshes increase computational cost without providing significant improvements in accuracy.

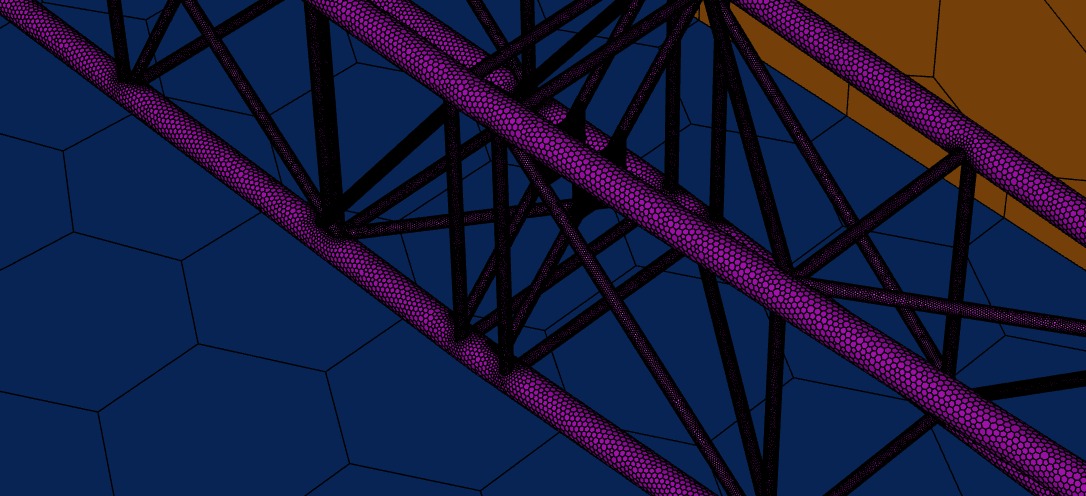

For the S-215 Pedestal Crane, mesh refinement was concentrated in locations where large stress gradients were expected. These included welded joints, boom connections, support brackets, pedestal transitions, lifting arm intersections, and geometric discontinuities where abrupt changes in cross-sectional geometry naturally produce stress concentrations. Less critical regions experiencing relatively uniform stress distributions were meshed using larger elements, allowing computational resources to be allocated efficiently.

Special attention was also given to maintaining high mesh quality throughout the structural model. Parameters such as element aspect ratio, skewness, orthogonality, and transition smoothness were continuously monitored to ensure that the finite element mesh accurately represented the physical geometry while remaining numerically stable. Poor-quality elements may produce inaccurate stress calculations or cause convergence difficulties during solution, making mesh quality an essential part of every professional finite element workflow.

At Epsilon X Sky, mesh convergence studies were performed to verify that simulation results were independent of mesh density. Several meshes of increasing refinement were generated and analyzed under identical loading conditions. Engineering quantities such as maximum von Mises stress, total deformation, and reaction forces were compared between successive mesh refinements until further increases in element count produced negligible changes in the results. This verification process ensured that the structural predictions represented the true physical response of the crane rather than numerical artifacts introduced by inadequate spatial discretization.

Mesh independence is one of the defining characteristics of high-quality engineering simulation. A validated mesh provides confidence that design decisions are based on structural behavior rather than computational approximation.

By combining careful geometry preparation, accurate material characterization, realistic contact definitions, and optimized mesh generation, the finite element model developed at Epsilon X Sky established a robust numerical foundation for the subsequent structural analysis. Every engineering decision made during this preprocessing stage contributed directly to the reliability of the final results, demonstrating that successful simulation begins long before the solver calculates the first iteration.

Structural Load Cases, Stress Distribution, and Deformation Assessment

Once the finite element model had been fully prepared, the project advanced to one of the most important stages of the engineering workflow: the application of realistic structural loading conditions. A finite element model without properly defined loads cannot accurately represent the behavior of a real crane operating in the field. The accuracy of any structural analysis therefore depends not only on the quality of the mesh or the material properties but also on how realistically the operational environment is represented within the numerical simulation.

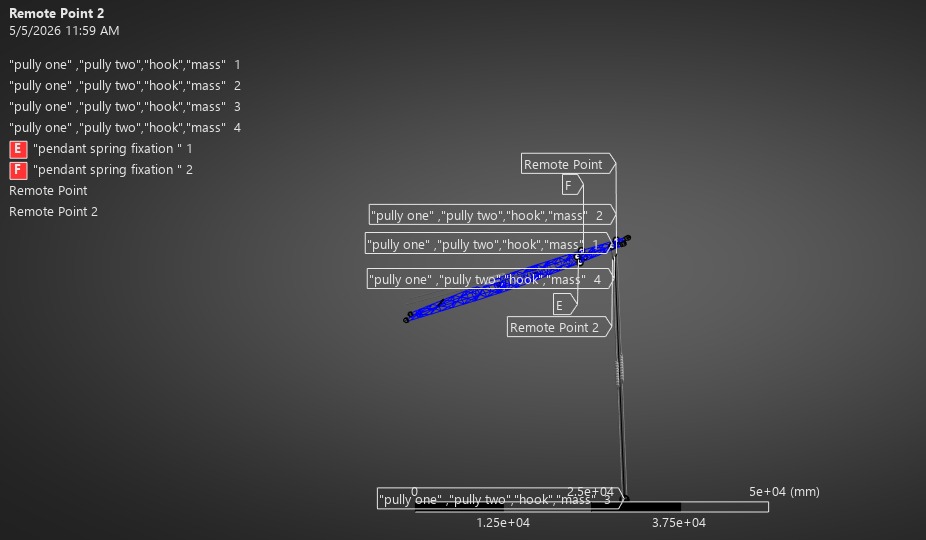

At Epsilon X Sky, the loading conditions were selected to reproduce the actual operational scenarios that an S-215 Pedestal Crane is expected to experience throughout its service life. Rather than analyzing only a single lifting condition, multiple load cases were considered to understand how the structure responds under different operating configurations. This comprehensive approach provides engineers with a much deeper understanding of structural behavior and ensures that critical loading scenarios are not overlooked during the design process.

Engineering simulation should never focus solely on the maximum lifting capacity. Every realistic operating condition contributes valuable information regarding the structural integrity of the crane.

One of the primary load cases involved the application of the rated lifting load at the hook location. This external force generated a combination of tensile, compressive, bending, and torsional stresses throughout the boom and pedestal assembly. As the suspended load acts at a considerable distance from the pedestal foundation, a significant bending moment develops within the boom structure. This moment increases proportionally with lifting radius, making boom position one of the most influential variables affecting structural performance.

The simulation demonstrated that load transfer follows a continuous path throughout the crane structure. The applied force initially enters the lifting hook before propagating through the boom, rotating platform, slewing bearing, pedestal column, and finally into the supporting foundation. Every structural member contributes to carrying a portion of the applied load, while local geometric discontinuities influence how internal stresses are distributed between adjacent components.

One of the major advantages of finite element analysis is its ability to visualize these internal load paths in three dimensions. Unlike conventional analytical calculations, which often simplify the structure into idealized beams or frames, ANSYS reveals precisely how stresses develop throughout every structural component. This information allows engineers to identify inefficient load paths, unnecessary material accumulation, and regions where reinforcement may be required.

Understanding load transfer is fundamental to structural optimization because it allows material to be placed exactly where it contributes most to the structural performance of the crane.

Stress analysis was performed using the von Mises equivalent stress criterion, which is widely accepted for evaluating ductile structural steels. The von Mises stress combines the individual stress components acting within a material into a single equivalent value that can be directly compared with the material's yield strength. Regions exhibiting elevated von Mises stress require particular attention because they often represent locations where yielding would begin if loading were increased beyond the design limits.

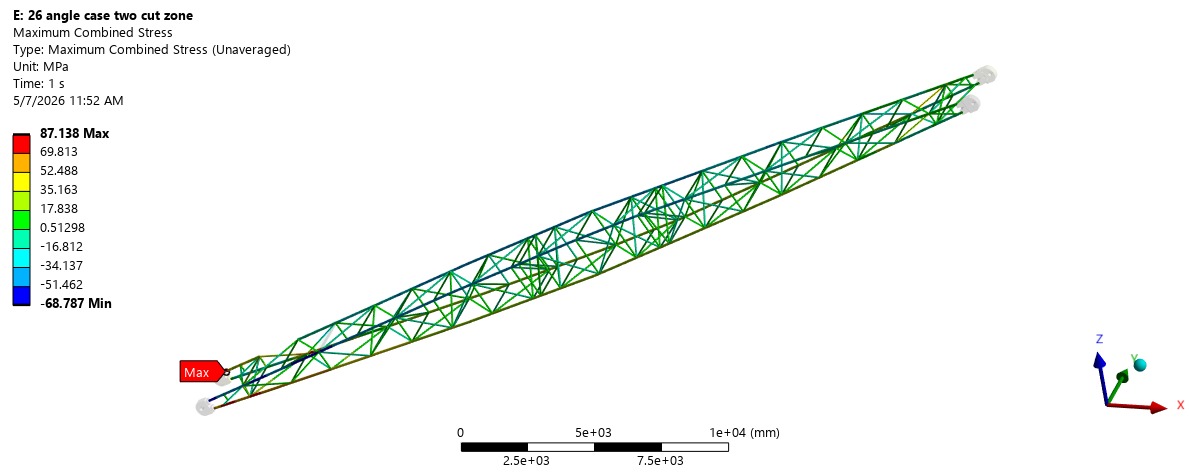

The resulting stress contours clearly illustrated that the highest stress levels were not distributed uniformly throughout the crane. Instead, they were concentrated around specific structural features where geometry changed abruptly or where multiple structural members intersected. Typical high-stress regions included boom-to-pedestal connections, reinforcement plate transitions, welded joints, support brackets, and areas surrounding large openings within structural members. These stress concentrations are entirely expected because changes in geometry naturally interrupt the uniform flow of internal forces through the structure.

It is important to recognize that the presence of localized stress concentrations does not necessarily indicate an unsafe design. Many structural components intentionally contain regions where stress levels exceed the average values observed elsewhere in the structure. The objective of engineering analysis is therefore to determine whether these localized stresses remain below allowable design limits while maintaining acceptable safety factors.

In addition to stress evaluation, the project included a detailed deformation analysis. Every structural member experiences some degree of elastic deformation when subjected to external loading. Although these deformations are often relatively small, they may significantly influence crane performance, especially during precision lifting operations where excessive boom deflection can reduce positioning accuracy or increase dynamic loading.

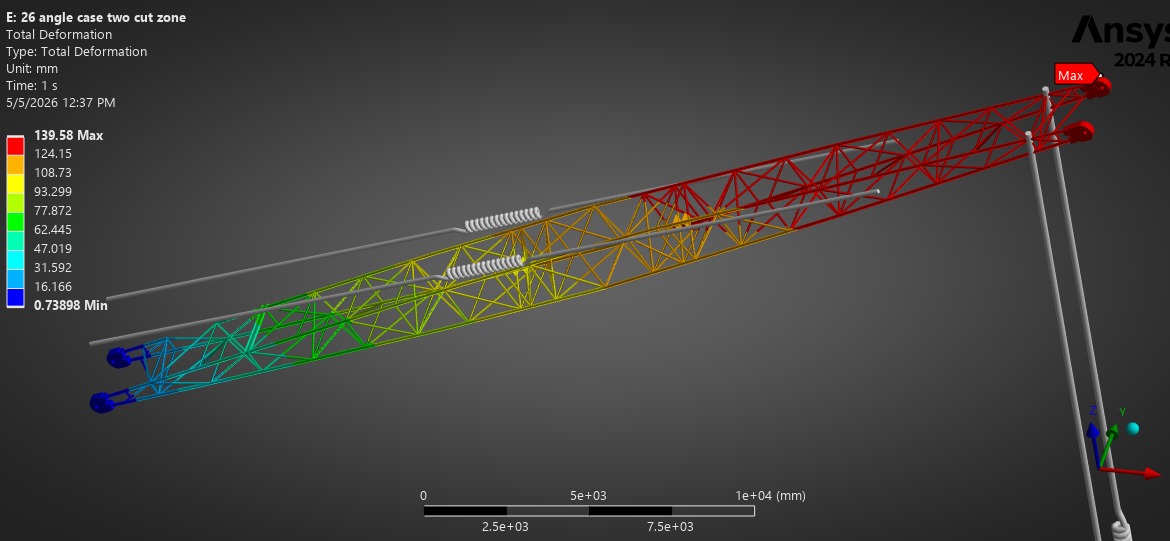

The finite element analysis calculated total deformation throughout the complete crane assembly, enabling engineers to identify both the magnitude and direction of structural displacement. As expected, the largest displacements occurred near the free end of the boom where bending effects were greatest. Meanwhile, the pedestal foundation exhibited relatively small displacements because of its substantially greater structural stiffness and direct connection to the supporting foundation.

Structural deformation is not inherently undesirable. Every engineering structure deforms under load. The critical question is whether the magnitude of deformation remains within acceptable operational limits while preserving structural safety.

Another important aspect of the study involved evaluating structural stiffness. Stiffness describes the ability of a structure to resist deformation under applied loading and represents one of the most important performance indicators for lifting equipment. A crane possessing high structural strength but insufficient stiffness may satisfy stress requirements while still experiencing excessive deflection that compromises operational accuracy or user confidence. Consequently, engineers must always evaluate stress and deformation simultaneously rather than considering either quantity independently.

Reaction forces generated at the pedestal supports were also examined during the analysis. These reaction forces represent the loads transmitted from the crane into the supporting foundation and play an essential role in foundation design. Accurate prediction of reaction forces enables civil and structural engineers to verify that the supporting platform possesses sufficient strength and stability to safely carry operational loads throughout the crane's service life.

Throughout the project, careful attention was devoted to validating the numerical results by examining equilibrium conditions and ensuring that applied loads balanced the calculated reaction forces. This verification step provides confidence that the finite element model accurately represents the underlying physical system and that no unintended numerical inconsistencies have influenced the solution.

The comprehensive stress and deformation assessment performed at Epsilon X Sky demonstrated the tremendous value of modern finite element analysis in structural engineering. Rather than relying solely on simplified calculations or conservative assumptions, engineers obtained detailed insight into the mechanical behavior of every structural component within the crane. This information supports informed design decisions, facilitates targeted structural optimization, and ultimately contributes to safer, lighter, and more reliable lifting equipment.

Finite Element Analysis transforms structural engineering from estimation into prediction, allowing engineers to understand not only whether a design is safe, but also why it behaves the way it does under real operating conditions.

Design Validation, Safety Factors, Structural Optimization, and Engineering Improvements

Completing a successful finite element simulation is not the final objective of an engineering project. Numerical results only become valuable when they are carefully interpreted and transformed into practical engineering decisions. After evaluating stress distributions and structural deformations, the next stage of the project focused on validating the design against engineering standards and identifying opportunities for further optimization. At Epsilon X Sky, this phase represented the bridge between computational analysis and real-world engineering performance, ensuring that the S-215 Pedestal Crane could operate safely, efficiently, and reliably under demanding service conditions.

One of the first aspects examined during the validation process was the overall structural safety factor. In engineering design, no structure should operate continuously at the material's ultimate capacity. Instead, every structural component must possess an adequate safety margin to account for uncertainties associated with loading conditions, manufacturing tolerances, material variability, environmental influences, and unexpected operational events. These uncertainties cannot always be predicted precisely, making the use of appropriate safety factors essential for long-term structural reliability.

Within ANSYS Mechanical, the calculated von Mises stresses were compared directly with the allowable material limits to determine the structural utilization of each component. Regions exhibiting relatively low utilization indicated opportunities for weight reduction, while highly utilized regions required additional engineering attention. This balanced approach allows designers to distribute material more efficiently throughout the crane rather than applying unnecessary reinforcement uniformly across the entire structure.

An efficient engineering design is not simply the strongest possible structure—it is the structure that achieves the required level of safety while using material as efficiently as possible.

The analysis also demonstrated that many structural members carried significantly lower stress levels than others. This finding is common in large welded structures because conservative design practices often lead to localized overdesign. Finite Element Analysis enables engineers to identify these regions objectively, allowing unnecessary material to be removed without compromising structural integrity. Reducing structural weight offers numerous advantages, including lower manufacturing costs, simplified transportation, reduced installation loads, improved crane dynamics, and decreased operating energy requirements.

While weight reduction is an important design objective, it must always be balanced against structural stiffness. Removing excessive material may reduce manufacturing costs but can also increase deformation and vibration during lifting operations. For this reason, every proposed design modification was evaluated using additional simulation iterations to verify that improvements in one performance metric did not negatively influence another.

The project also investigated stress concentration zones identified during the previous analysis stage. Structural discontinuities such as welded joints, reinforcement plate terminations, geometric transitions, and support connections naturally experience elevated stress levels because internal load paths become concentrated within relatively small regions. These stress concentrations frequently govern the fatigue life of heavy lifting equipment and therefore require careful engineering consideration.

Several optimization strategies were evaluated to reduce these localized stresses. In some regions, increasing the radius of geometric transitions helped distribute stresses more smoothly throughout adjacent structural members. In other areas, reinforcement plates were reshaped to improve load transfer while minimizing unnecessary increases in structural weight. Weld configurations were also reviewed to ensure that stress flow remained as continuous as possible across critical structural interfaces.

Many structural failures originate not because the overall structure is weak, but because local stress concentrations gradually initiate fatigue cracks over thousands of loading cycles. Reducing stress concentrations is therefore one of the most effective methods of extending structural service life.

Another important aspect of the validation process involved evaluating structural stability. Large slender members subjected to compressive loading may experience buckling even when material stresses remain below the yield strength. Unlike material yielding, which develops gradually, buckling may occur suddenly and result in catastrophic structural failure if not properly considered during the design process.

Although the primary objective of this project focused on static structural analysis, the simulation results also provided valuable insight into regions where additional buckling assessments could be performed during future design stages. Engineers frequently combine static structural analysis with eigenvalue buckling analysis and nonlinear stability studies to obtain a complete understanding of structural performance under critical loading conditions. This integrated approach provides a far more comprehensive evaluation than considering each analysis independently.

Fatigue performance represents another essential consideration for pedestal crane design. Unlike structures subjected to only a few loading events, cranes experience thousands—and often millions—of repeated lifting cycles throughout their operational lifetime. Even relatively low stress levels may eventually initiate microscopic cracks if cyclic loading continues over extended periods. Consequently, fatigue analysis is often more important than static strength alone when evaluating long-term structural reliability.

The stress distributions obtained during the ANSYS simulation serve as the foundation for subsequent fatigue assessments by identifying regions where cyclic stresses are highest. Engineers can then estimate fatigue life using recognized design standards, enabling maintenance schedules and inspection intervals to be established based on engineering evidence rather than operational experience alone. This predictive maintenance philosophy significantly reduces unexpected equipment failures while improving operational safety.

At Epsilon X Sky, design validation extended beyond verifying numerical results. Every simulation output was interpreted within the broader context of practical engineering performance, manufacturing feasibility, inspection accessibility, and long-term operational reliability. A structurally optimized crane must not only satisfy mathematical criteria but must also remain practical to manufacture, assemble, maintain, and inspect throughout decades of service.

The iterative nature of modern engineering simulation provides tremendous advantages during this optimization process. Instead of constructing multiple expensive prototypes, engineers can evaluate numerous design alternatives digitally, making incremental improvements after each simulation until the desired balance between safety, weight, stiffness, and cost has been achieved. This significantly shortens product development time while reducing engineering risk and manufacturing expenses.

Simulation-driven optimization has fundamentally transformed structural engineering. Rather than validating completed designs, engineers now use simulation proactively to guide design decisions from the earliest stages of product development.

The comprehensive validation and optimization process carried out during this project illustrates the true value of advanced finite element analysis. Beyond simply calculating stresses and deformations, ANSYS provided a decision-making platform that enabled informed engineering improvements supported by quantitative numerical evidence. Through careful interpretation of simulation results, the S-215 Pedestal Crane design could be refined to achieve greater structural efficiency, enhanced reliability, and improved long-term performance under demanding offshore operating conditions.

Project Outcomes, Industrial Applications, and the Future of FEA in Crane Engineering

The successful completion of the S-215 Pedestal Crane analysis demonstrated how modern engineering simulation has become an indispensable tool in the development of heavy lifting equipment. Rather than relying exclusively on empirical formulas, simplified analytical calculations, or expensive prototype testing, engineers can now evaluate structural performance digitally with remarkable accuracy before manufacturing even begins. This transformation has fundamentally changed the engineering design process, allowing companies to develop safer, lighter, and more efficient products while significantly reducing development time and project costs.

At Epsilon X Sky, the results of this project extended far beyond generating colorful stress contours or deformation plots. Every simulation was treated as an engineering decision-making tool capable of revealing valuable insights into the crane's structural behavior under realistic operating conditions. The finite element model enabled engineers to visualize how forces traveled throughout the entire structure, identify regions where stress concentrations developed, evaluate the effectiveness of reinforcement members, and verify that all critical components remained within allowable design limits.

One of the most significant outcomes of the project was the increased confidence provided by simulation-driven validation. Manufacturing heavy offshore equipment requires substantial financial investment, and identifying structural weaknesses after fabrication can lead to expensive redesigns, production delays, and operational downtime. By performing comprehensive finite element analysis during the design phase, potential structural issues can be identified and resolved before manufacturing begins.

The greatest value of engineering simulation lies not in confirming that a design works, but in discovering opportunities for improvement before physical production starts.

The project also demonstrated how numerical simulation supports cost optimization. Steel represents a considerable portion of the total manufacturing cost of offshore cranes, and even modest reductions in structural weight can produce significant financial savings over multiple production units. Through stress analysis and structural optimization, engineers can identify regions where material utilization is relatively low and safely reduce unnecessary structural mass without compromising performance. This optimization process decreases raw material consumption, reduces transportation costs, simplifies installation, and improves the overall economic efficiency of the crane.

Another important achievement involved improving long-term structural reliability. Offshore cranes are expected to operate continuously for many years under highly demanding environmental conditions. Exposure to cyclic loading, wind forces, marine corrosion, and repeated lifting operations gradually affects structural performance throughout the service life of the equipment. Finite Element Analysis provides engineers with detailed knowledge of where fatigue damage is most likely to initiate, allowing maintenance programs to focus inspection efforts on the most critical structural regions.

Predictive engineering is replacing reactive maintenance. Modern simulation enables engineers to anticipate structural challenges long before they become operational problems.

The knowledge gained from this project is not limited solely to pedestal cranes. The engineering methodology developed using ANSYS Mechanical can be applied to a wide range of heavy industrial equipment including offshore cranes, mobile cranes, tower cranes, harbor lifting systems, drilling structures, marine loading arms, heavy transport equipment, and complex steel frameworks. Although each structure possesses unique design characteristics, the underlying engineering principles governing stress analysis, deformation assessment, material behavior, and structural optimization remain fundamentally similar.

One of the greatest strengths of ANSYS Mechanical is its ability to integrate multiple engineering disciplines within a single simulation environment. While this project focused primarily on static structural behavior, future investigations could expand the analysis by incorporating fatigue assessment, modal analysis, harmonic response, transient dynamics, nonlinear contact analysis, thermal loading, and even fluid-structure interaction for wind-sensitive crane components. Such multiphysics capabilities allow engineers to understand how different physical phenomena influence one another, producing a far more realistic representation of operational behavior than isolated analyses alone.

As industries continue moving toward digital engineering and Industry 4.0, simulation is becoming an essential component of product development rather than an optional verification tool. Digital twins, predictive maintenance systems, and real-time structural monitoring all rely on validated numerical models developed through advanced finite element analysis. By combining simulation with operational data collected from sensors installed on real equipment, engineers can continuously monitor structural health, predict maintenance requirements, and extend equipment service life with unprecedented accuracy.

At Epsilon X Sky, we believe that engineering simulation should serve as a strategic tool throughout the entire product lifecycle. From initial concept development and structural optimization to certification support, manufacturing validation, and operational assessment, ANSYS enables engineers to make decisions based on scientific evidence rather than assumptions. This philosophy not only improves engineering quality but also enhances productivity, reduces project risk, and accelerates innovation across multiple industrial sectors.

The S-215 Pedestal Crane project highlights how advanced computational methods are reshaping the future of structural engineering. High-fidelity finite element analysis provides engineers with a detailed understanding of structural behavior that would be impossible to obtain through conventional calculations alone. By accurately predicting stresses, deformations, load paths, and safety margins, simulation empowers engineering teams to develop products that are simultaneously stronger, lighter, safer, and more economical.

Engineering excellence is achieved when experience is combined with accurate simulation, rigorous validation, and continuous optimization.

As engineering challenges become increasingly complex, simulation-driven design will continue to play a central role in advancing heavy industrial equipment. Organizations that embrace advanced FEA technologies gain a significant competitive advantage by reducing development costs, improving product reliability, accelerating innovation, and delivering higher-quality engineering solutions to their clients.

At Epsilon X Sky, our mission is to help industries harness the full potential of advanced engineering simulation. Whether developing offshore cranes, aerospace structures, renewable energy systems, automotive components, or industrial machinery, we apply scientific rigor, engineering expertise, and cutting-edge ANSYS technologies to solve complex real-world problems with confidence and precision.

The future of engineering belongs to organizations that simulate before they manufacture, optimize before they build, and validate before they operate. Through advanced finite element analysis, Epsilon X Sky transforms engineering ideas into reliable, high-performance solutions that meet the highest standards of safety, efficiency, and innovation.
