Bridge Transient System Coupling FSI Analysis Using ANSYS

Introduction & Project Engineering Background

Modern bridge systems are exposed to continuously changing environmental and operational conditions. Wind loads, traffic-induced vibrations, transient structural excitation, vortex shedding, and dynamic aerodynamic effects create highly complex interactions between fluid flow and structural behavior. Traditional static structural calculations are no longer sufficient for accurately predicting the real operational response of bridge systems, especially in lightweight or long-span bridge structures.

This project presents a comprehensive Transient Fluid-Structure Interaction (FSI) analysis of a bridge system using ANSYS. The study focuses on coupling Computational Fluid Dynamics with transient structural analysis to evaluate the bridge response under aerodynamic loading conditions over time.

The project integrates ANSYS Fluent for airflow simulation and ANSYS Mechanical for structural response evaluation. Unlike steady-state approaches, transient FSI captures time-dependent behavior, making the analysis significantly more realistic and representative of actual bridge operation.

The project investigates how aerodynamic forces dynamically interact with structural deformation during transient loading conditions.
Transient FSI analysis provides a realistic prediction of bridge vibration, stress propagation, and aerodynamic stability.

The bridge geometry analyzed in this study represents a lightweight truss-supported bridge structure exposed to external airflow conditions. The primary engineering objective was to evaluate aerodynamic pressure distribution, transient structural stress behavior, and deformation response while ensuring overall structural stability.

This study also emphasizes the growing importance of simulation-driven engineering workflows in civil and infrastructure projects. By using advanced multiphysics simulation, engineers can reduce uncertainty, improve structural reliability, and optimize bridge designs before physical construction begins.

CFD Domain, Mesh Generation & Aerodynamic Simulation Setup

The aerodynamic simulation was conducted within a large external flow computational domain designed to replicate realistic atmospheric airflow conditions around the bridge structure. The computational domain dimensions were selected carefully to minimize boundary influence and ensure proper wake development downstream of the bridge.

A highly refined computational mesh was generated around the bridge geometry using unstructured polyhedral elements combined with localized refinement zones near structural members. The mesh density increases significantly around the bridge surfaces to capture detailed aerodynamic behavior.

Special attention was given to:

• -Structural edges

• -Truss intersections

• -Wake formation regions

• -Boundary layer development zones

Inflation layers were applied near solid surfaces to accurately resolve near-wall velocity gradients and pressure behavior.

Mesh refinement around structural members is essential for accurately predicting aerodynamic forces and transient flow behavior.
High-quality meshing improves numerical stability and ensures realistic vortex formation prediction.

The CFD analysis performed in ANSYS Fluent solved the transient Navier-Stokes equations under incompressible turbulent flow assumptions. Time-dependent simulation settings were used to capture fluctuating aerodynamic loads acting on the bridge structure.

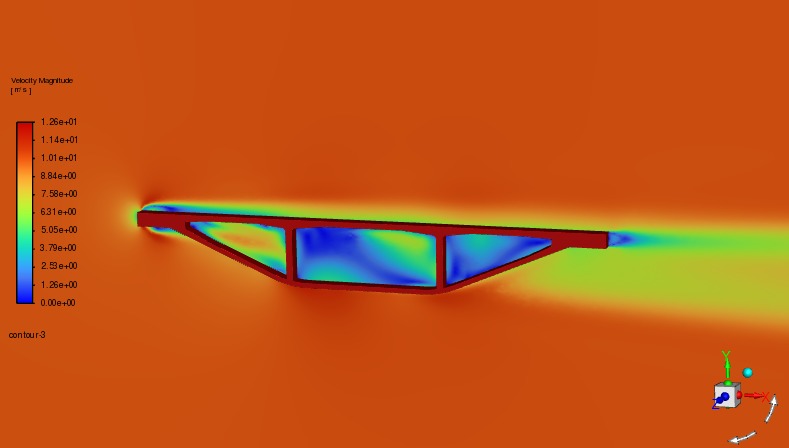

The airflow velocity field revealed complex aerodynamic behavior around the bridge truss geometry. As air passes through the structural members, localized acceleration zones develop around narrow sections while low-pressure wake regions form downstream.

The simulation clearly captured:

• -Flow separation

• -Wake instability

• -Vortex shedding

• -Velocity recirculation zones

These aerodynamic phenomena are critical because they directly influence structural vibration and fatigue loading.

Transient airflow behavior generates fluctuating pressure loads that significantly affect bridge structural response.
Vortex shedding is one of the primary causes of dynamic oscillation in lightweight bridge systems.

The velocity vectors demonstrated strong turbulence interaction around truss intersections where airflow direction changes rapidly. Pressure fluctuations in these regions create periodic structural excitation forces that must be considered in long-term structural design.

Transient Structural Analysis & Fluid-Structure Coupling

The structural component of the project was carried out using ANSYS Mechanical through a fully coupled transient FSI workflow. Aerodynamic pressure loads obtained from the CFD simulation were transferred directly to the structural solver at each transient time step.

The bridge structure was modeled using realistic material properties and structural constraints representative of practical bridge support conditions. Fixed supports were applied at cable connection and anchoring regions while transient aerodynamic loading acted along the bridge body.

The structural simulation focused on evaluating:

• -Equivalent stress distribution

• -Total deformation behavior

• -Dynamic response over time

• -Stress propagation across truss members

The transient stress results demonstrated smooth stress transfer throughout the bridge structure with localized stress concentration near support connection regions and truss junctions.

Stress concentrations naturally occur near structural connections where load transfer becomes more complex.
Transient analysis allows engineers to monitor structural response continuously over time rather than at a single static condition.

The equivalent stress contours showed that the structure remained within acceptable engineering safety limits throughout the simulation duration. No excessive structural instability or dangerous resonance behavior was observed during transient loading.

The deformation analysis revealed gradual displacement response caused by aerodynamic loading fluctuations. The bridge structure exhibited controlled flexibility rather than rigid behavior, which is important for dissipating dynamic energy efficiently.

The coupled FSI workflow also demonstrated how structural deformation slightly modifies surrounding airflow patterns. Even small displacements can influence local pressure fields and vortex behavior, reinforcing the importance of fully coupled multiphysics analysis.

FSI coupling captures the two-way interaction between fluid forces and structural response with significantly higher realism.
Ignoring structural flexibility can lead to underestimation of aerodynamic instability risks.

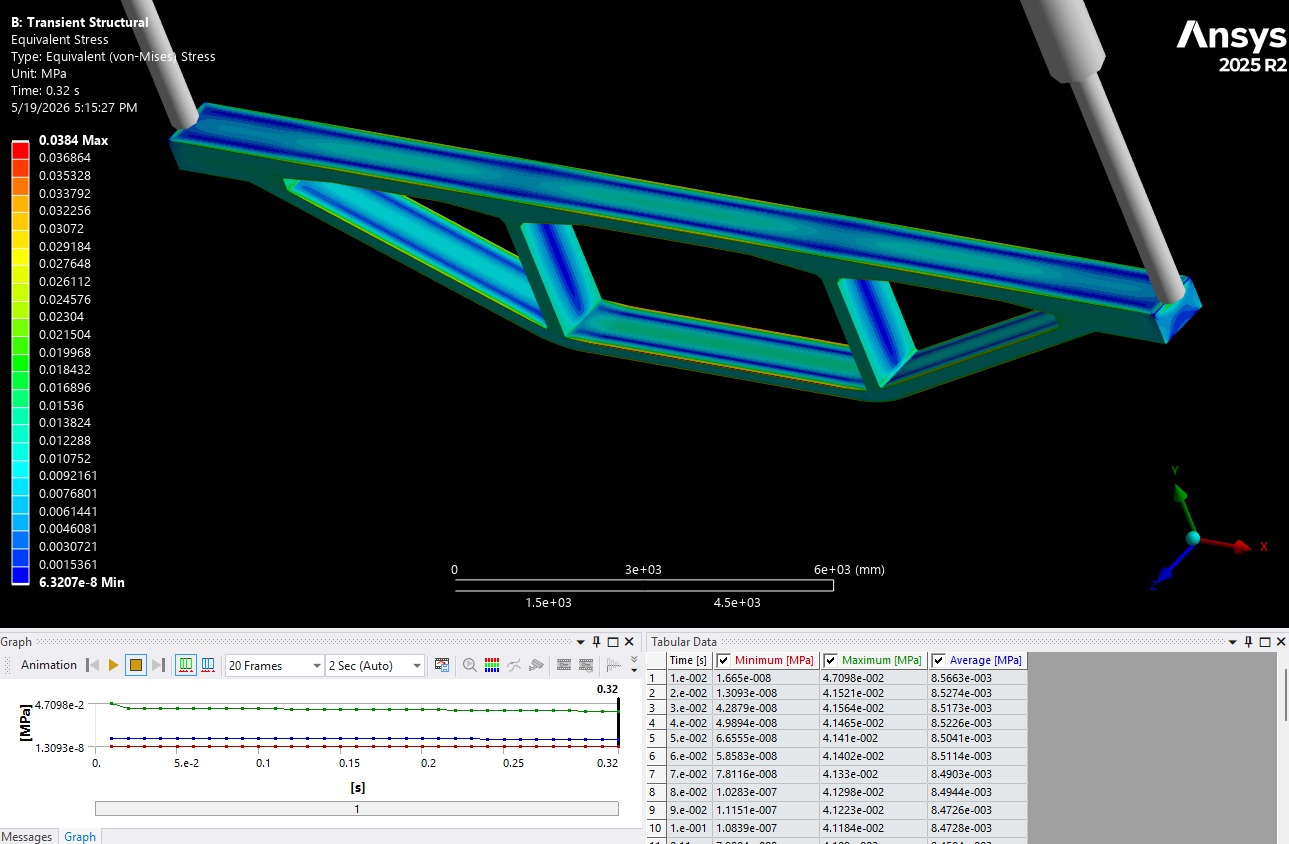

Time-history graphs generated during the transient analysis provided additional insight into structural stability over the simulation period. The stress response remained stable without uncontrolled amplification, indicating good aerodynamic and structural compatibility.

Engineering Importance, Sustainability Impact & Industrial Applications

One of the most important outcomes of this project is the demonstration of how advanced simulation tools can improve bridge safety, durability, and sustainability. Traditional bridge design approaches often rely heavily on empirical assumptions and conservative safety factors. However, advanced FSI simulation provides detailed physics-based understanding of structural behavior under realistic environmental loading.

Using ANSYS, engineers can predict aerodynamic instability before physical construction, significantly reducing design uncertainty and minimizing costly redesign processes.

Simulation-driven engineering reduces structural risk while improving long-term operational reliability.
Advanced FSI analysis allows engineers to optimize structural weight without compromising safety.

From a sustainability perspective, accurate structural optimization reduces unnecessary material usage. Lightweight optimized bridge systems require less steel and concrete while maintaining structural integrity. This directly contributes to:

• -Reduced construction cost

• -Lower environmental impact

• -Improved energy efficiency in manufacturing

• -Extended structural lifespan

The methodology developed in this project can be applied to a wide range of civil and infrastructure systems including:

• Cable-stayed bridges

• Suspension bridges

• Pedestrian bridges

• Offshore platforms

• Wind-sensitive structures

• High-rise buildings

The transient FSI workflow also provides significant value for vibration mitigation and fatigue assessment. By identifying aerodynamic excitation sources early, engineers can optimize structural geometry to reduce long-term fatigue damage.

Early prediction of aerodynamic vibration significantly improves structural durability and maintenance planning.
Digital simulation workflows reduce dependence on expensive physical wind tunnel testing.

Another major advantage of this project is the ability to integrate CFD, structural mechanics, and transient dynamic analysis within a unified simulation environment. This integrated workflow improves engineering efficiency while providing deeper understanding of system behavior.

The study demonstrates that modern infrastructure engineering increasingly depends on advanced digital simulation technologies. As bridge structures become lighter, longer, and more architecturally complex, the importance of multiphysics simulation will continue to grow.

Conclusion

This Bridge Transient System Coupling FSI project demonstrates the power of advanced multiphysics simulation in modern civil engineering applications.The integration of Computational Fluid Dynamics and transient structural analysis provides a realistic representation of bridge behavior under dynamic environmental conditions.

Unlike traditional static analysis methods, the coupled FSI workflow captures the interaction between aerodynamic loading and structural deformation over time.The project successfully simulated transient airflow behavior around the bridge geometry using ANSYS Fluent.

Complex aerodynamic phenomena such as vortex shedding, wake formation, and pressure fluctuation were clearly identified throughout the simulation process.These transient aerodynamic effects directly influenced the structural response of the bridge system.The structural simulation performed in ANSYS Mechanical accurately captured stress propagation and deformation behavior.

The bridge structure remained stable during the full transient loading duration.Equivalent stress levels remained within acceptable engineering safety limits.No excessive structural instability or dangerous resonance amplification was detected.The transient response showed smooth load transfer across the truss-supported bridge members.Localized stress concentration regions were identified near support connections and structural intersections.These areas are critical for future fatigue monitoring and design optimization.

The deformation contours demonstrated controlled structural flexibility rather than rigid unstable behavior.This flexible response improves energy dissipation during transient loading conditions.The CFD results revealed realistic airflow acceleration around narrow bridge sections.Pressure distribution patterns were successfully transferred into the structural solver through the coupled FSI interface.

This two-way interaction improved the physical realism of the simulation significantly.The project also highlighted the importance of mesh refinement in multiphysics simulations.Accurate near-wall meshing improved pressure prediction quality around structural members.Transient time-stepping methods successfully captured fluctuating aerodynamic loads.The simulation workflow demonstrated strong numerical stability throughout the solution process.The project confirms that transient FSI analysis is essential for modern lightweight bridge systems.Traditional static calculations cannot fully capture aerodynamic instability risks.Advanced digital engineering workflows reduce uncertainty during bridge design stages.Simulation-driven optimization helps engineers improve structural reliability before physical construction begins.The use of ANSYS enables high-fidelity engineering validation with reduced development cost.

The project supports the growing transition toward digital twin engineering methodologies.Advanced simulation allows engineers to study multiple operating conditions efficiently.The methodology can be extended to suspension bridges, cable-stayed bridges, and pedestrian bridges.It can also be adapted for offshore platforms and wind-sensitive infrastructure systems.The project demonstrates how CFD and FEA integration improves engineering decision-making quality.Aerodynamic performance can now be evaluated with significantly higher accuracy than empirical approaches alone.Structural optimization becomes more efficient when realistic loading behavior is available.This reduces unnecessary material usage and improves sustainability performance.Lighter bridge systems can be developed without compromising structural safety.

Reduced material consumption also lowers manufacturing and transportation costs.The study highlights the importance of transient dynamic assessment for long-term infrastructure durability.Repeated aerodynamic loading can generate fatigue damage over extended operational periods.FSI analysis helps engineers identify these risks during early design stages.This improves maintenance planning and operational reliability.The project also demonstrates the importance of integrated engineering simulation environments.Unified workflows improve engineering productivity and reduce analysis complexity.Multiphysics simulation is becoming increasingly necessary for future infrastructure development.As bridge structures become more advanced, realistic transient analysis becomes essential rather than optional.

The simulation results obtained in this project provide valuable engineering insight into aerodynamic stability behavior.The study confirms the effectiveness of transient FSI coupling for bridge system evaluation.The project represents a strong example of simulation-based engineering innovation using ANSYS.

The developed workflow can support future industrial bridge optimization and infrastructure sustainability projects.

Overall, this project successfully demonstrates how advanced transient FSI analysis can improve bridge safety, performance, efficiency, and long-term structural reliability.
