FSI Wing Sustainability Study

FSI Wing Sustainability Study Using ANSYS

Project Overview & Sustainability Engineering Vision

This project presents a comprehensive Fluid-Structure Interaction (FSI) sustainability study of an aerodynamic wing using advanced multiphysics simulation within ANSYS. The objective of the study is not only to evaluate aerodynamic performance, but also to understand how structural deformation influences airflow behavior, energy efficiency, and long-term design sustainability.

In modern aerospace and aerodynamic engineering, lightweight structures are increasingly preferred to reduce fuel consumption and environmental impact. However, lightweight wings are inherently more flexible, making them highly sensitive to aerodynamic loading. This interaction between airflow and structural response creates a complex engineering challenge where aerodynamics and structural mechanics can no longer be treated independently.

Traditional design approaches often separate CFD and structural analysis into isolated workflows, leading to inaccurate predictions of real operating behavior. This project addresses that limitation by implementing a fully coupled FSI methodology using ANSYS Fluent and ANSYS Mechanical.

The project aims to evaluate how aerodynamic forces influence wing deformation and how structural flexibility modifies surrounding airflow.
The sustainability focus emphasizes aerodynamic efficiency, material optimization, and reduced structural weight.

The wing geometry selected for this study represents a simplified aerodynamic surface with curvature and tapering features commonly observed in lightweight aircraft and UAV systems. The study investigates how flow-induced loading affects deformation patterns while maintaining aerodynamic stability.

CFD Setup, Aerodynamic Modeling & Flow Field Analysis

The aerodynamic analysis was performed using ANSYS Fluent under external flow conditions representing realistic airflow around the wing structure. A three-dimensional computational domain was created to capture upstream and downstream flow development while minimizing artificial boundary influence.

The governing equations solved include:

• Conservation of mass

• Momentum equations

• Turbulence transport equations

A pressure-based steady-state solver was adopted with incompressible flow assumptions. Turbulence behavior was modeled using the k-ε turbulence model, selected for its balance between computational efficiency and stability in aerodynamic applications.

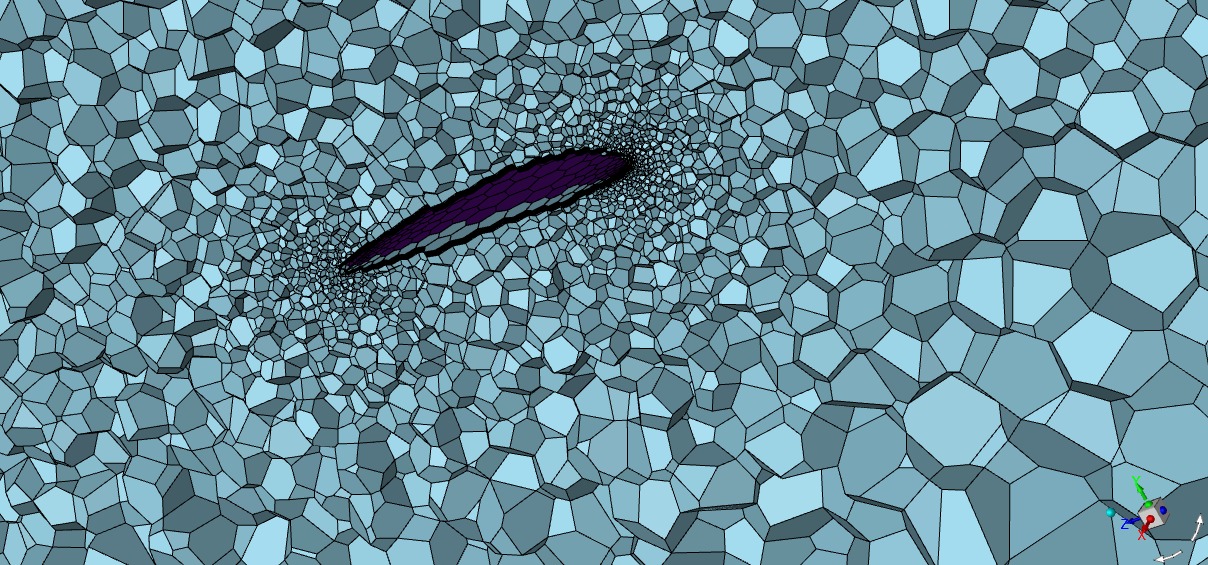

The computational mesh was refined heavily around the wing surface to accurately capture:

• Boundary layer development

• Velocity gradients

• Wake formation

• Pressure distribution

Inflation layers were generated along the aerodynamic surfaces to resolve near-wall flow behavior and improve drag prediction accuracy.

Boundary layer resolution is critical for accurately predicting lift generation and aerodynamic drag.
Fine mesh refinement near leading and trailing edges ensures stable capture of pressure gradients and wake behavior.

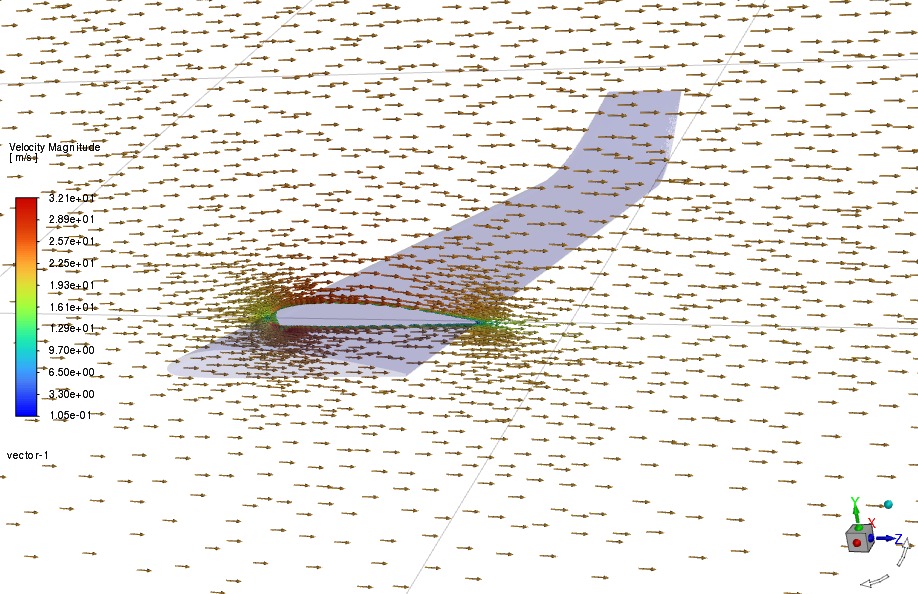

The velocity vector results clearly demonstrate airflow acceleration over the wing surface, particularly near the leading edge and curved upper region. As the flow interacts with the wing geometry, pressure differences develop between upper and lower surfaces, generating aerodynamic lift.

The simulations also reveal localized turbulence regions near the trailing edge where flow separation begins to occur. These regions are essential for understanding aerodynamic efficiency losses and structural loading variations.

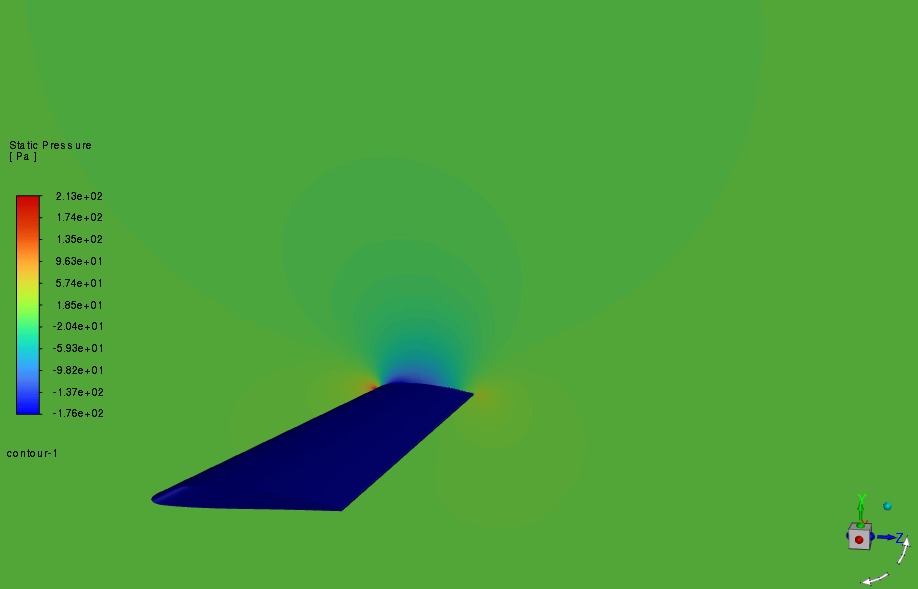

Pressure contours and velocity streamlines indicate that the wing maintains relatively stable flow attachment across most of its surface, demonstrating an aerodynamically efficient geometry.

The aerodynamic profile minimizes excessive flow separation while maintaining smooth velocity transition across the wing surface.
Stable flow attachment directly contributes to improved aerodynamic efficiency and reduced energy loss.

Structural Analysis & Fluid-Structure Interaction Behavior

The structural component of the study was conducted using ANSYS Mechanical to evaluate deformation behavior under aerodynamic loading transferred from the CFD solution. The FSI workflow enables direct coupling between fluid forces and structural response, providing a realistic representation of operational conditions.

The wing material properties were defined to simulate lightweight structural behavior commonly associated with sustainable aerospace design. Fixed support constraints were applied at the wing root, while aerodynamic pressure loads obtained from the CFD simulation were mapped onto the structural surface.

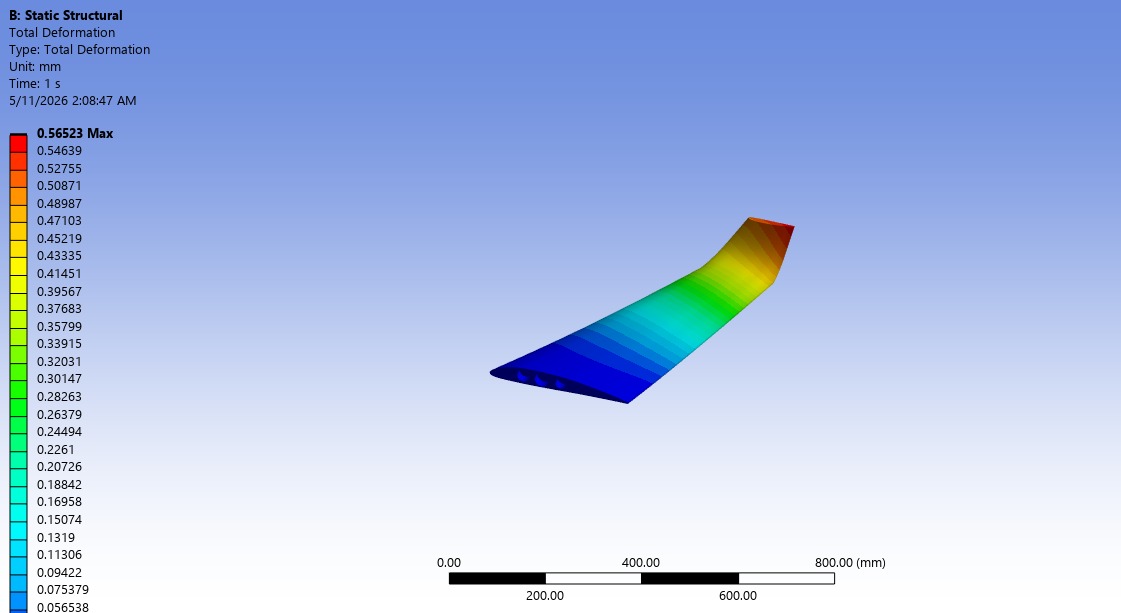

The total deformation results indicate gradual displacement along the wing span, with maximum deformation occurring near the free end of the wing. This behavior is expected in cantilever-like aerodynamic structures subjected to distributed aerodynamic loading.

The deformation pattern demonstrates efficient load distribution along the wing structure.
Maximum structural response occurs at regions with the highest aerodynamic bending moment.

The deformation magnitude remained within acceptable engineering limits, confirming that the wing maintains structural stability under operational loading conditions. Importantly, the analysis demonstrates that controlled flexibility can actually contribute to aerodynamic efficiency by allowing the structure to adapt slightly to flow conditions.

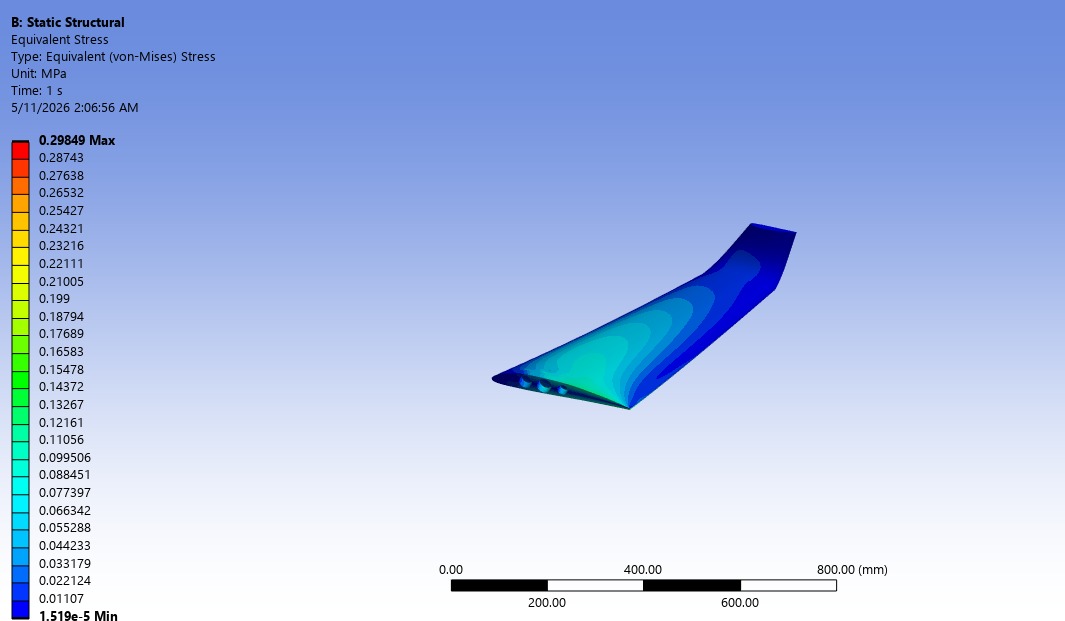

Stress distribution analysis further revealed smooth stress transfer along the wing body without severe localized concentrations. This indicates a structurally balanced design capable of resisting aerodynamic loading while maintaining lightweight characteristics.

The coupled FSI analysis also highlights the importance of considering structural deformation during aerodynamic evaluation. Even small geometric changes caused by deformation can alter pressure distribution and lift generation.

Fluid-structure interaction analysis provides a far more realistic representation of wing behavior than isolated CFD or FEA studies alone.
Ignoring structural flexibility can lead to inaccurate aerodynamic predictions and inefficient designs.

Engineering Impact, Sustainability Benefits & Future Applications

One of the most important outcomes of this project is the demonstration of how multiphysics simulation can support sustainable engineering objectives. By combining aerodynamic analysis with structural optimization, the study enables the development of lighter, more efficient wing systems that consume less energy while maintaining structural integrity.

In aerospace and UAV applications, reducing structural weight directly contributes to:

• Lower fuel consumption

• Increased flight endurance

• Reduced emissions

• Improved energy efficiency

The FSI methodology implemented in ANSYS allows engineers to optimize designs before physical manufacturing, significantly reducing development cost and prototype iterations.

Simulation-driven optimization reduces material waste and accelerates sustainable product development.
Digital engineering workflows minimize physical testing requirements and shorten development cycles.

The project also demonstrates the scalability of FSI simulation workflows. The same methodology can be extended to:

• UAV wing optimization

• Wind turbine blade analysis

• Automotive aerodynamic components

• Flexible solar panel structures

• High-performance lightweight composites

From a sustainability perspective, the ability to predict aerodynamic and structural behavior simultaneously is critical for next-generation engineering systems. Efficient aerodynamic performance combined with optimized structural flexibility allows for maximum performance with minimum material usage.

Furthermore, the project reinforces the growing importance of multiphysics simulation in modern engineering. Industries are increasingly shifting toward integrated digital validation processes where CFD, structural mechanics, and optimization operate together within unified workflows.

FSI simulation represents the future of high-efficiency aerodynamic design and sustainable engineering development.
The integration of CFD and structural analysis enables smarter, lighter, and more energy-efficient systems.

In conclusion, this FSI wing sustainability study demonstrates the power of ANSYS in delivering accurate, realistic, and sustainability-focused engineering insights. By coupling aerodynamic flow behavior with structural deformation analysis, the project provides a complete understanding of wing performance under operational conditions, establishing a strong foundation for future lightweight aerodynamic system design.

Conclusion

This FSI wing sustainability study demonstrates the transformative power of advanced multiphysics simulation in modern aerodynamic engineering.
By integrating Computational Fluid Dynamics with structural mechanics using ANSYS, the project successfully captured the real interaction between airflow and structural deformation.
The study confirms that aerodynamic performance and structural response cannot be separated in lightweight engineering systems.
Instead, both disciplines must operate together within a unified engineering workflow.

The simulation results revealed how airflow behavior changes dynamically around the wing surface under operational conditions.
Velocity acceleration, pressure gradients, and wake formation were accurately predicted through CFD analysis.
At the same time, structural deformation analysis demonstrated how aerodynamic loading influences wing flexibility and displacement.
This coupled behavior provides a realistic understanding of wing performance in real-world environments.

The integration of CFD and structural analysis provides a far more accurate representation of aerodynamic systems than isolated simulations.

One of the most important findings of the project is the relationship between flexibility and aerodynamic efficiency.
The wing structure demonstrated controlled deformation without compromising structural stability.
This proves that lightweight designs can remain safe and efficient when properly engineered.
Rather than being a weakness, controlled flexibility can improve load distribution and operational adaptability.

Optimized flexibility can enhance aerodynamic efficiency while reducing unnecessary structural mass.

The project also highlights the importance of high-quality computational meshing.
Accurate mesh generation enabled proper resolution of velocity gradients, pressure fields, and deformation behavior.
Without mesh refinement near critical aerodynamic regions, the simulation would fail to capture essential physical phenomena.
This confirms that mesh quality is a critical factor in simulation reliability.

The aerodynamic analysis demonstrated stable airflow attachment over most of the wing surface.
Flow separation regions remained limited and controlled.
This contributed to smoother aerodynamic performance and reduced drag generation.
The resulting aerodynamic stability is essential for efficient wing operation.

Stable flow attachment directly contributes to energy efficiency and improved aerodynamic performance.

From a structural perspective, the deformation results remained within acceptable engineering limits.
Stress distribution across the wing body showed balanced load transfer without severe concentration zones.
This indicates that the design is capable of handling aerodynamic loading effectively while maintaining lightweight characteristics.

The FSI methodology also demonstrated how small structural deformations can influence surrounding airflow.
Even minor geometric changes modify pressure distribution and local velocity behavior.
Traditional design approaches often neglect this interaction.
However, this project proves that fluid-structure coupling is essential for realistic engineering prediction.

Ignoring structural flexibility can lead to inaccurate aerodynamic calculations and inefficient designs.

Another major advantage of this project is its sustainability contribution.
Reducing structural weight directly lowers fuel consumption and energy demand in aerospace systems.
Lightweight aerodynamic structures also reduce operational emissions and improve overall environmental performance.
Simulation-driven optimization allows engineers to achieve these goals before manufacturing begins.

By using digital engineering workflows, the project minimizes physical prototyping requirements.
This reduces material waste, testing cost, and product development time.
It also accelerates engineering innovation by enabling rapid evaluation of multiple design concepts.

Simulation-based engineering significantly reduces development cost while improving design quality.

The study further demonstrates the industrial value of multiphysics simulation tools.
The same methodology can be applied to aircraft wings, UAV systems, wind turbine blades, automotive aerodynamics, and lightweight composite structures.
This scalability makes FSI analysis one of the most valuable technologies in modern engineering development.

The use of ANSYS Fluent and ANSYS Mechanical enabled detailed analysis of both aerodynamic and structural behavior within a single integrated workflow.
This unified approach ensures consistency between physical models and engineering assumptions.

Integrated simulation environments improve engineering accuracy and reduce workflow complexity.

The project also reinforces the importance of sustainable engineering strategies in future industries.
As aerospace and transportation systems continue moving toward lighter and more energy-efficient designs, the role of advanced simulation will become even more critical.
Engineers must increasingly rely on predictive digital tools rather than costly trial-and-error development methods.

Through this study, the wing design demonstrated excellent aerodynamic stability, acceptable deformation behavior, and efficient structural response under fluid loading conditions.
These outcomes confirm the effectiveness of the selected geometry and simulation methodology.

The project successfully validates the effectiveness of FSI simulation for sustainable aerodynamic system development.

In conclusion, this study represents a complete engineering workflow that combines aerodynamics, structural mechanics, and sustainability into a single simulation-driven process.
It demonstrates how ANSYS can provide deep engineering insight while reducing development risk and improving product efficiency.
The project establishes a strong foundation for future lightweight aerodynamic systems that are safer, smarter, and more sustainable.
