Advanced Heat Exchanger Fin & Angle Optimization Using ANSYS

Project Background & Engineering Motivation

This project focuses on the advanced optimization of heat exchanger fin geometry and fin angle configuration, aiming to significantly enhance thermal performance while maintaining acceptable pressure drop levels. Heat exchangers are critical components across multiple industries, including HVAC, automotive cooling, and industrial process systems, where even minor improvements in efficiency can lead to substantial energy savings and operational gains.

Traditional design methods for finned heat exchangers rely heavily on empirical correlations and simplified one-dimensional calculations, which often fail to capture complex flow behaviors such as flow maldistribution, local turbulence intensification, and thermal boundary layer development. As a result, many designs suffer from over-conservative sizing, inefficient heat transfer, or excessive pressure losses.

To overcome these limitations, this project utilizes a simulation-driven engineering approach based on ANSYS, integrating detailed Computational Fluid Dynamics analysis through ANSYS Fluent. The objective is to move beyond approximation and develop a data-validated fin configuration that maximizes heat transfer efficiency while controlling aerodynamic penalties.

The core goal of this project is to identify the optimal fin geometry and orientation that enhances thermal performance without introducing excessive pressure drop.
This approach replaces traditional trial-and-error methods with precise, physics-based optimization.

CFD Model Setup & Numerical Methodology

The CFD model developed in this project represents a high-fidelity numerical reproduction of a finned heat exchanger segment, designed to capture the intricate interaction between fluid flow and thermal behavior at both local and global scales. The entire workflow was built using ANSYS, with the fluid domain solved in ANSYS Fluent. The primary objective of the setup was to ensure that the simulation environment reflects realistic operating conditions while maintaining numerical stability and accuracy.

The geometry preparation stage involved isolating a representative periodic section of the heat exchanger rather than modeling the full system. This approach reduces computational cost while preserving the essential physics of flow through fin arrays. The fin structures were modeled with precise control over thickness, pitch, spacing, and inclination angle, ensuring that geometric variations directly correspond to parametric study inputs. Special attention was given to eliminating sharp, non-physical edges and ensuring smooth transitions to avoid artificial numerical artifacts.

A periodic modeling strategy significantly reduces computational expense while maintaining physical accuracy for repeating fin geometries.

Following geometry preparation, the domain was divided into fluid and solid regions where necessary, although the primary focus remained on conjugate heat transfer behavior within the fluid domain. Interfaces between surfaces were carefully defined to ensure proper continuity of flow variables and thermal gradients.

Meshing was one of the most critical stages of the setup. A hybrid meshing strategy was adopted, combining structured elements in regular regions with unstructured tetrahedral or polyhedral elements in complex fin geometries. Inflation layers were generated along all fin surfaces to accurately resolve the thermal and velocity boundary layers, which are essential for predicting convective heat transfer. The first cell height was selected to satisfy appropriate y+ values, ensuring compatibility with the chosen turbulence model.

Boundary layer resolution is essential for capturing heat transfer coefficients accurately and avoiding underprediction of thermal performance.

Mesh independence studies were conducted to verify that further refinement does not significantly alter key outputs such as pressure drop and heat transfer rate. Multiple mesh densities were tested, and convergence was achieved when variations in results fell within an acceptable tolerance range.

The solver configuration in ANSYS Fluent was set to a steady-state, pressure-based formulation, appropriate for incompressible flow conditions typically encountered in heat exchanger applications. The governing equations solved include conservation of mass, momentum, and energy, forming the foundation of the simulation.

Turbulence modeling was handled using the standard k-ε model, chosen for its robustness and computational efficiency in industrial flows. While more advanced models such as k-ω SST could provide additional near-wall accuracy, the k-ε model offers a strong balance between accuracy and computational cost for this application.

The choice of turbulence model directly influences the prediction of mixing, pressure drop, and thermal gradients within fin arrays.

Boundary conditions were defined to replicate realistic operating scenarios. A uniform velocity inlet was applied at the entrance of the domain, representing the incoming fluid flow rate. At the outlet, a pressure-outlet condition was used to allow natural development of the flow field. All solid surfaces, including fins and channel walls, were assigned no-slip conditions, ensuring that fluid velocity at the wall is zero and boundary layer formation is properly captured.

Thermal boundary conditions were applied depending on the study case, including constant wall temperature or constant heat flux assumptions. These conditions allow for evaluation of heat transfer performance under controlled scenarios and facilitate comparison between different fin configurations.

Accurate boundary condition definition ensures that simulation results are physically meaningful and directly applicable to real systems.

Discretization schemes were carefully selected to enhance numerical accuracy. Second-order upwind schemes were used for momentum and energy equations to reduce numerical diffusion and improve solution precision. Pressure-velocity coupling was handled using algorithms such as SIMPLE, ensuring stable convergence behavior.

Solution initialization was performed using hybrid initialization to provide a reasonable starting point for iterative convergence. Residuals for continuity, momentum, and energy equations were closely monitored, with strict convergence criteria applied to ensure solution stability. In addition to residuals, monitor points for pressure drop and heat transfer rate were tracked to confirm that the solution reached a physically steady state.

Convergence is not only defined by residual reduction but also by stabilization of key engineering parameters such as pressure drop and heat transfer rate.

To further enhance solution reliability, under-relaxation factors were adjusted where necessary to prevent divergence, particularly in cases involving high fin density or strong flow acceleration. Sensitivity analyses were also conducted to evaluate the impact of inlet velocity and fin angle variations on overall system behavior.

Post-processing of results included detailed visualization of velocity contours, pressure distribution, temperature fields, and streamlines. These outputs provide critical insight into flow behavior within fin passages, highlighting regions of high turbulence, recirculation, and thermal gradients.

Post-processing is essential for translating numerical results into actionable engineering insights and design improvements.

Overall, the CFD model setup represents a carefully balanced combination of geometric fidelity, numerical accuracy, and computational efficiency. By leveraging the capabilities of ANSYS, the simulation framework provides a reliable platform for evaluating and optimizing fin designs.

This methodology ensures that design decisions are based on validated physics rather than assumptions, leading to more efficient and reliable heat exchanger systems.

Flow Behavior, Fin Interaction & Thermal Performance

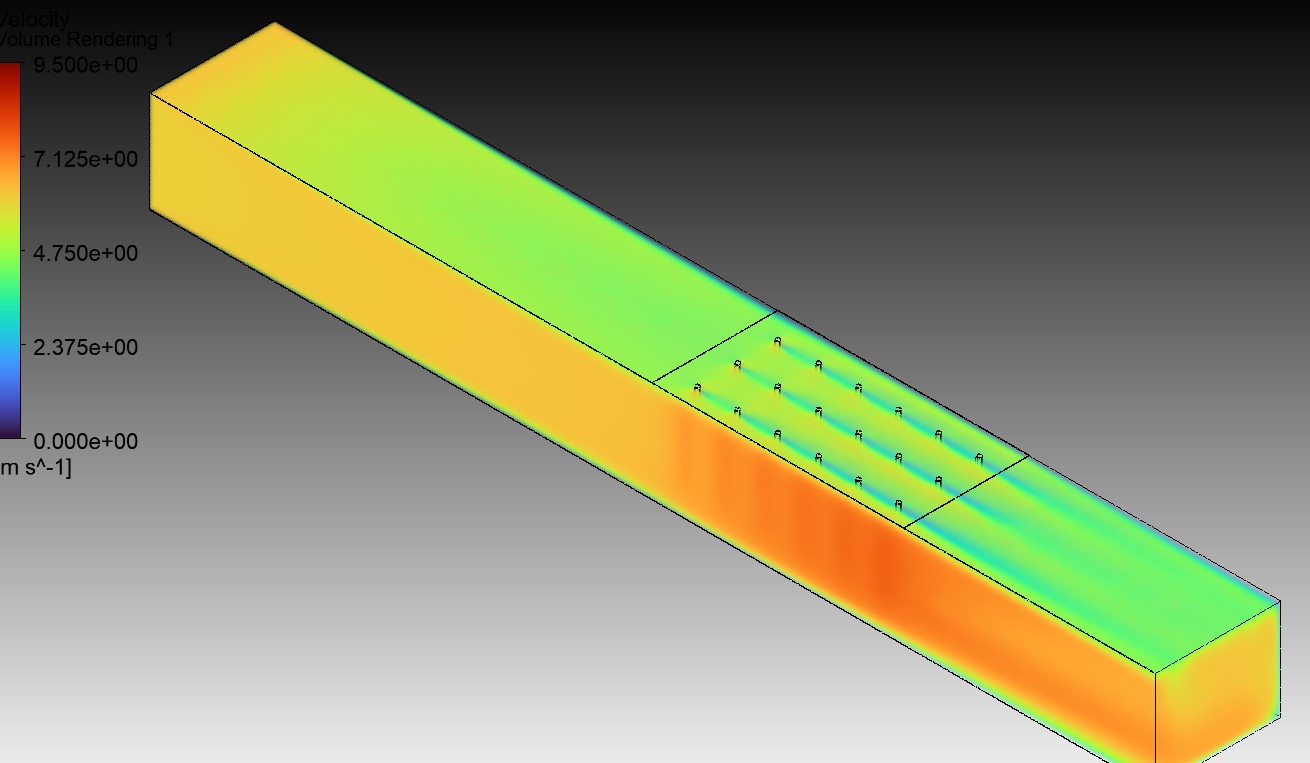

The CFD results provide deep insight into how fin geometry and orientation affect flow distribution and heat transfer. Velocity contours indicate that the presence of fins induces flow acceleration between narrow passages, increasing local convection coefficients. However, this also leads to pressure losses that must be carefully managed.

The introduction of angled fins plays a crucial role in modifying the flow structure. Instead of allowing the fluid to pass straight through, angled configurations promote secondary flow generation and mixing, which disrupts thermal boundary layers and enhances heat transfer rates.

Angled fins significantly improve thermal performance by increasing fluid mixing and disrupting stagnant thermal zones.
Proper fin spacing and orientation reduce flow dead zones and ensure uniform heat transfer across the surface.

The results show that certain fin angles create an optimal balance where heat transfer enhancement outweighs the additional pressure drop. In contrast, overly aggressive angles lead to excessive turbulence and energy loss without proportional thermal gains.

Additionally, the simulations reveal the importance of avoiding flow maldistribution, where some regions experience higher velocity while others remain underutilized. The optimized configuration ensures more uniform velocity distribution, improving overall exchanger efficiency.

Optimization Results, Engineering Impact & Industrial Value

Through iterative simulation and parametric variation, the project successfully identifies an optimized fin configuration that delivers enhanced thermal performance with controlled pressure penalties. The final design achieves:

• Improved heat transfer coefficient due to enhanced mixing

• Reduced thermal resistance across fin surfaces

• Balanced pressure drop within acceptable operational limits

• More uniform flow distribution across the exchanger domain

The optimized fin design achieves a measurable increase in thermal efficiency without compromising system stability.
Simulation-driven optimization eliminates unnecessary material usage and reduces system energy consumption.

From an engineering standpoint, this work highlights the critical role of CFD in modern heat exchanger design. By capturing complex interactions between fluid flow and thermal behavior, engineers can move beyond simplified assumptions and develop solutions that are both efficient and reliable.

The industrial implications are significant. This methodology can be directly applied to:

• -Automotive radiators and intercoolers

• -HVAC condenser and evaporator coils

• -Industrial heat recovery systems

• -Oil & gas process heat exchangers

Simulation-driven design reduces development time, minimizes prototyping costs, and accelerates product innovation.
It enables engineers to achieve optimal performance while maintaining cost-effectiveness and scalability.

The simulation model represents a detailed section of a finned heat exchanger, including internal flow passages and fin arrays. Special attention was given to accurately resolving the geometry of the fins, including spacing, thickness, and inclination angle, as these parameters directly influence both heat transfer and flow resistance.

Using ANSYS Fluent, the following setup was applied:

• A 3D steady-state simulation with incompressible flow assumptions

• Turbulence modeled using the k-ε model, suitable for industrial flow regimes

• Boundary conditions including:

  • Velocity inlet representing operational flow conditions

  • Pressure outlet

  • No-slip wall conditions across all solid surfaces

• High-quality mesh refinement near fin surfaces to capture boundary layer effects and local gradients

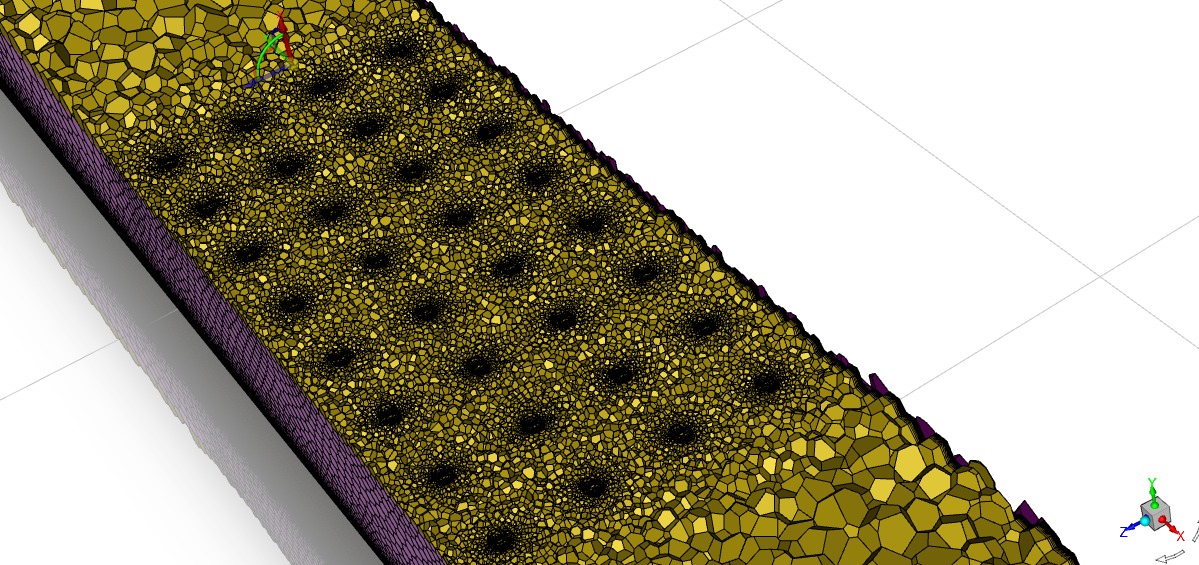

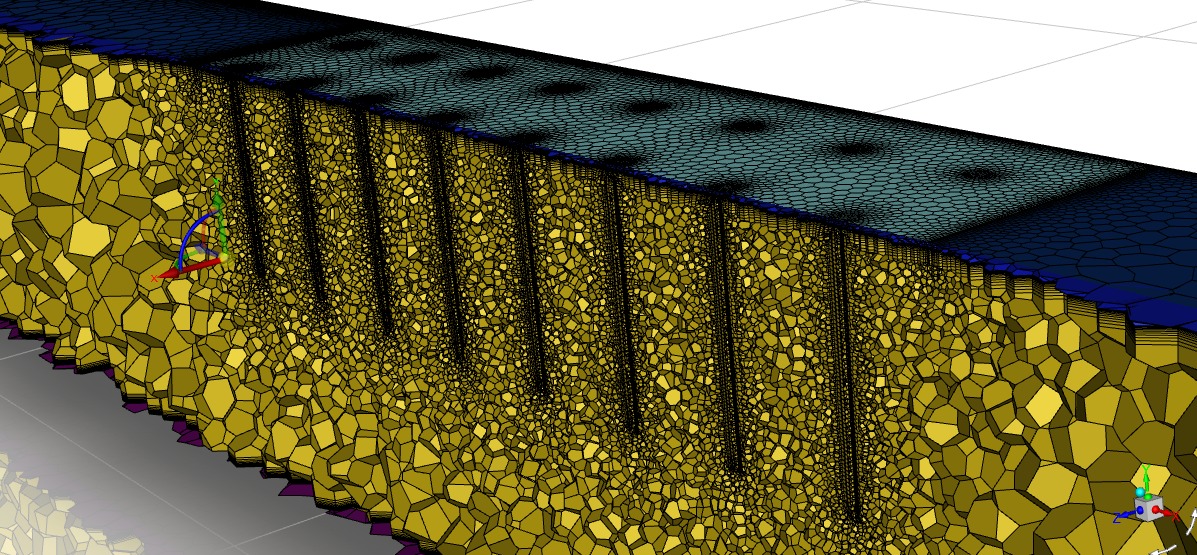

The mesh structure, as shown in the project visuals, demonstrates a high-resolution discretization around the fins, ensuring accurate capture of velocity and thermal gradients.

Accurate meshing near fin surfaces is critical to resolving heat transfer mechanisms and flow separation behavior.
The numerical setup ensures that both macro-scale flow patterns and micro-scale thermal effects are captured reliably.

Conclusion

This project clearly demonstrates how simulation-driven design can transform the performance of finned heat exchangers from a trial-and-error process into a precise, data-backed engineering workflow. By leveraging ANSYS and its CFD capabilities through ANSYS Fluent, the study successfully captured the complex interaction between fluid flow, fin geometry, and thermal behavior.

The analysis confirms that fin design is not a minor geometric detail, but a core performance driver that directly affects heat transfer efficiency and pressure drop. Through systematic variation of fin angle, spacing, and arrangement, the project identified configurations that significantly enhance thermal performance while maintaining acceptable flow resistance.

The optimized fin geometry achieves a strong balance between increased heat transfer and controlled pressure losses.

The results also highlight the importance of flow uniformity and turbulence control. Properly angled fins promote beneficial mixing and disrupt thermal boundary layers, while poor configurations can create dead zones and inefficiencies. This reinforces the need for detailed CFD analysis rather than relying solely on empirical correlations.

Simulation reveals hidden flow behaviors that cannot be captured using simple traditional methods.

Another key outcome is the validation of a robust numerical methodology, including high-quality meshing, appropriate turbulence modeling, and accurate boundary condition definition. These elements ensure that the simulation results are reliable and applicable to real-world engineering scenarios.

From an industrial perspective, the project demonstrates how CFD can reduce dependence on physical prototyping, leading to lower development costs and faster design cycles. Engineers can test multiple configurations virtually, optimize performance, and validate designs before manufacturing.

This approach minimizes risk and maximizes confidence in final product performance.

Furthermore, the study emphasizes the scalability of the methodology. The same workflow can be applied to various applications, including HVAC systems, automotive cooling, and industrial heat exchangers, making it highly valuable across multiple engineering sectors.

The integration of simulation into the design process also supports energy efficiency goals, as optimized heat exchangers require less energy to achieve the same thermal output. This contributes to both economic savings and environmental sustainability.

Optimized designs lead to better energy utilization and reduced operational costs over time.

In conclusion, this project showcases the power of ANSYS in delivering high-performance, optimized heat exchanger designs. By focusing on fin and angle optimization, it provides a clear pathway toward more efficient, reliable, and cost-effective thermal systems.

Simulation-driven engineering is no longer optional—it is essential for achieving competitive and innovative designs in modern industry.
